CYB-245BD

FLEXIBLE BRICK PRODUCTION

Brick Making Machines for Growing Production

CYON TECH brick making equipment covers mobile, electric, diesel, semi-automatic and vacuum-extrusion series. Output ranges from 300–400 to 600–800 molding cycles per shift, while vacuum extruders deliver 1–8 tons per hour for projects ranging from small building-material plants to medium-scale continuous production.

Simple operation typically requires only 1–2 people. Interchangeable molds produce hollow blocks, solid blocks and standard bricks in different sizes, with customization available for equipment, voltage, molds and brick formats. Practical, mobile designs process local materials including sand, cement, gravel, fly ash, slag and clay. Products have been exported to more than 30 countries and regions.

300–800Cycles per Shift

1–8 t/hExtrusion Output

1–2Operators

30+Export Markets

Request Model Recommendation

DETAILED PARAMETERS

Brick Making Machine Specifications

Compare drive system, voltage, molding cycle, production capacity, staffing, dimensions and compatible brick materials across the complete series.

Model	Drive / Power	Voltage	Cycle / Method	Production Capacity	Operators	Dimensions	Weight	Brick Types / Materials
CYB-245AE	Vibration motors 0.55 kW × 2 · 1.1 kW total	220V / 380V	45 sec/cycle	300–400 cycles/shift	1–2	100×75×130 cm	170 kg	Hollow and standard bricks · sand, cement, gravel and fly ash
CYB-245BE	Vibration motors 0.55 kW × 2 · 1.1 kW total	220V / 380V	45 sec/cycle	300–400 cycles/shift	1–2	80×125×140 cm	200 kg	Hollow and standard bricks · sand, cement, gravel and fly ash

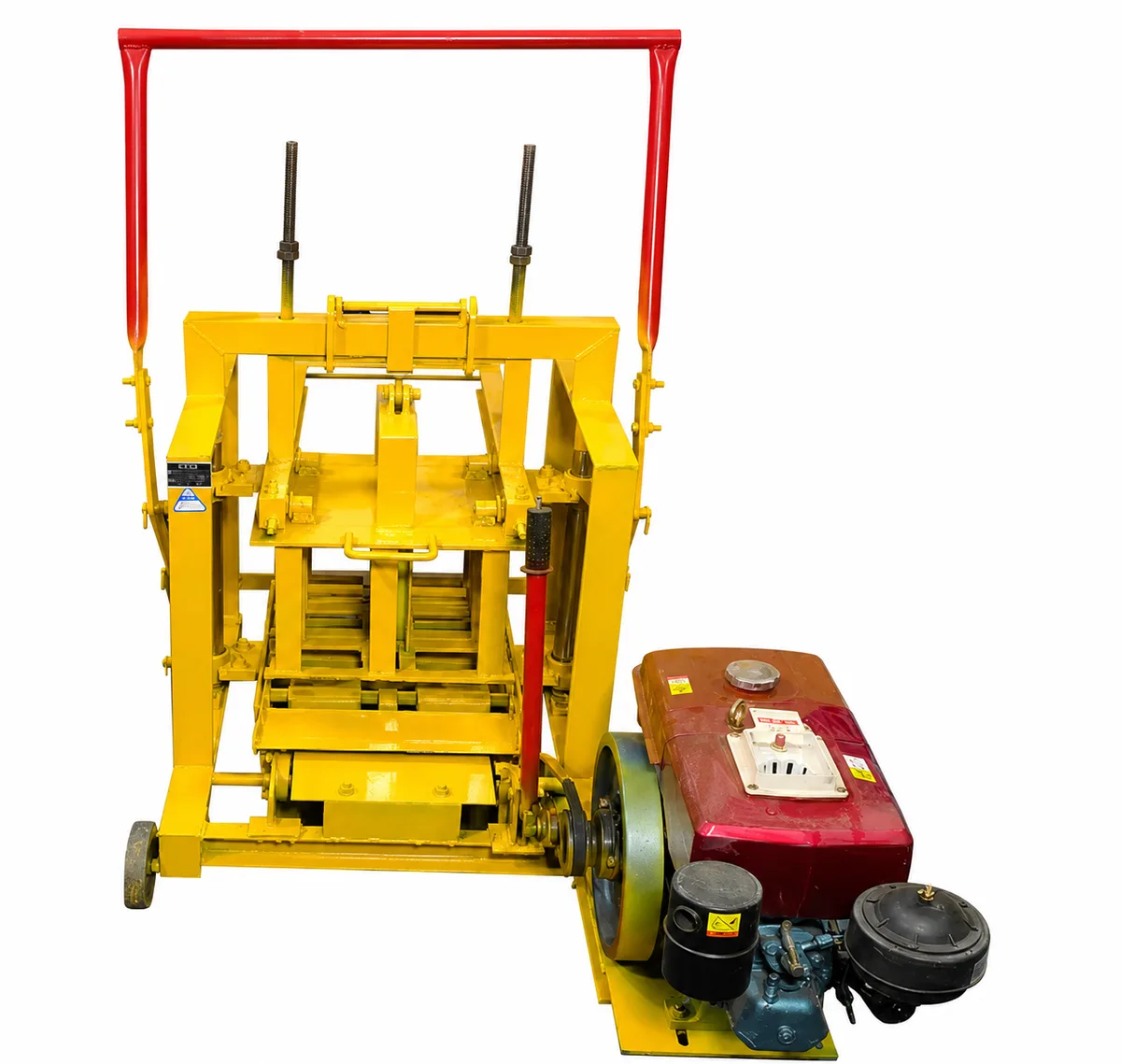

CYB-245BD	Diesel engine · 5.76 / 5.15 kW	—	45 sec/cycle	300–400 cycles/shift	1–2	140×190×155 cm	380 kg	Hollow and standard bricks · suitable for areas without stable power
CYB-435AE	Vibration motors 1.1 kW × 3 · 4.8 / 7.3 kW total	380V / 220V	35 sec/cycle	600–800 cycles/shift	1–2	123×130×145 cm	600 kg	Multiple hollow and standard brick sizes · sand, cement and fly ash

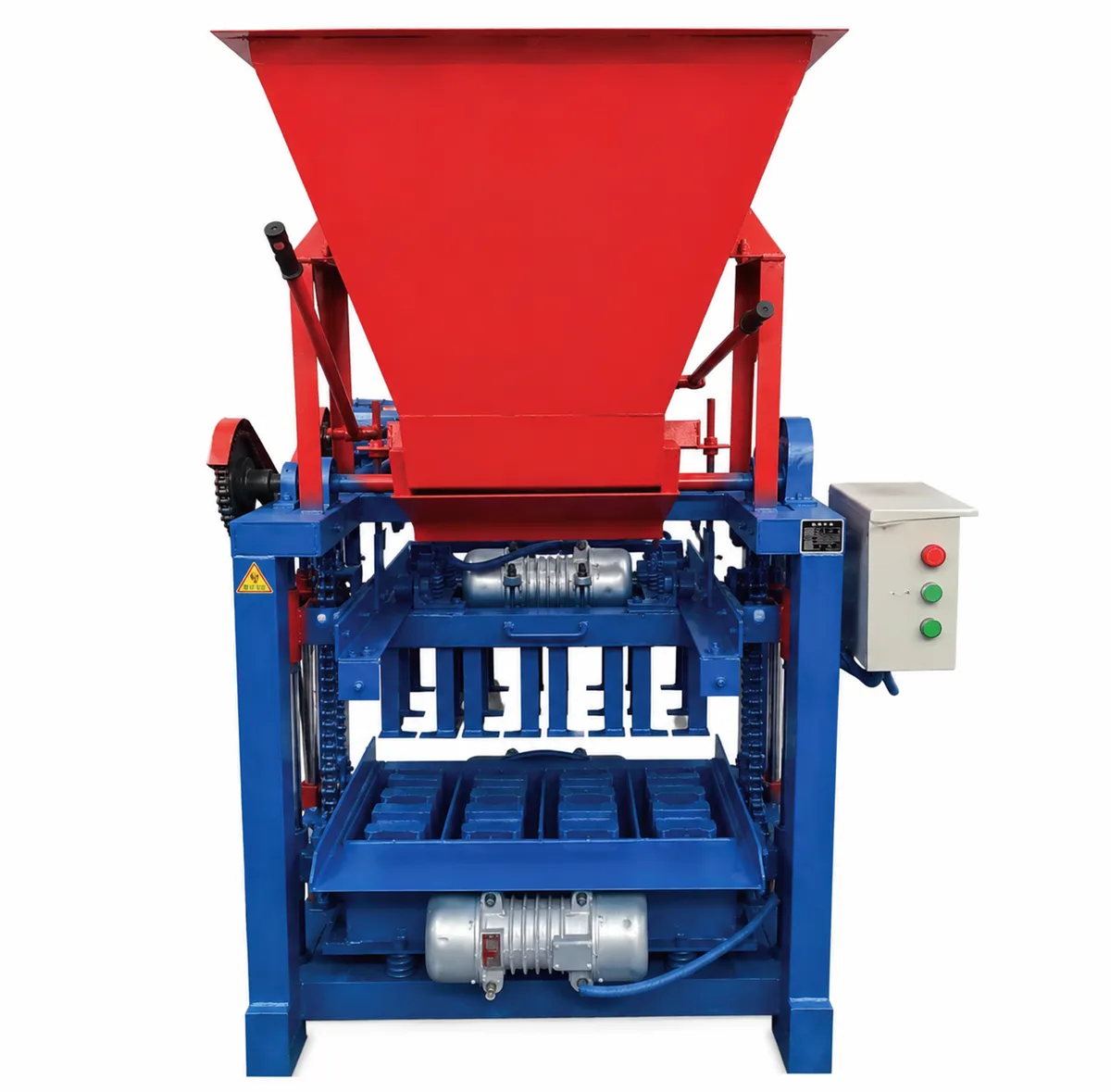

CYB-435BE	Vibration motors 1.1 kW × 3 · 4.8 / 7.3 kW total	380V / 220V	35 sec/cycle	600–800 cycles/shift	1–2	123×130×197 cm	650 kg	Multiple hollow and standard brick sizes
CYB-435CE	Vibration motors 1.1 kW × 3 · 6.3 / 7.3 kW total	380V / 220V	35 sec/cycle	600–800 cycles/shift	1–2	120×130×150 cm	630 kg	Multiple hollow and standard brick sizes

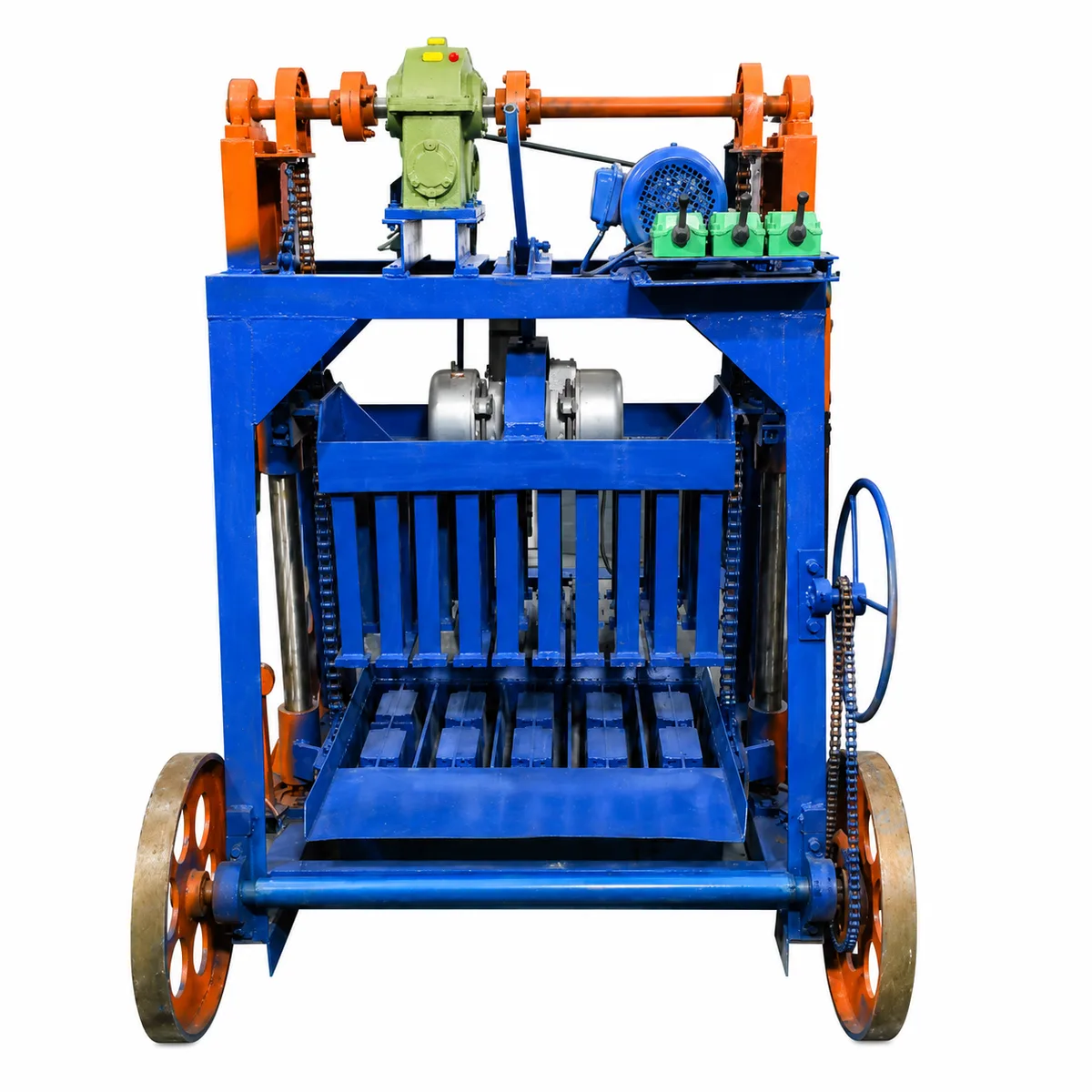

CYB-435DE	Vibration motors 1.1 kW × 2 · lifting motor 3 / 4 kW · 5.2 / 6.2 kW total	380V / 220V	35 sec/cycle	400–600 cycles/shift	1–2	132×155×155 cm	640 kg	Hollow and standard bricks

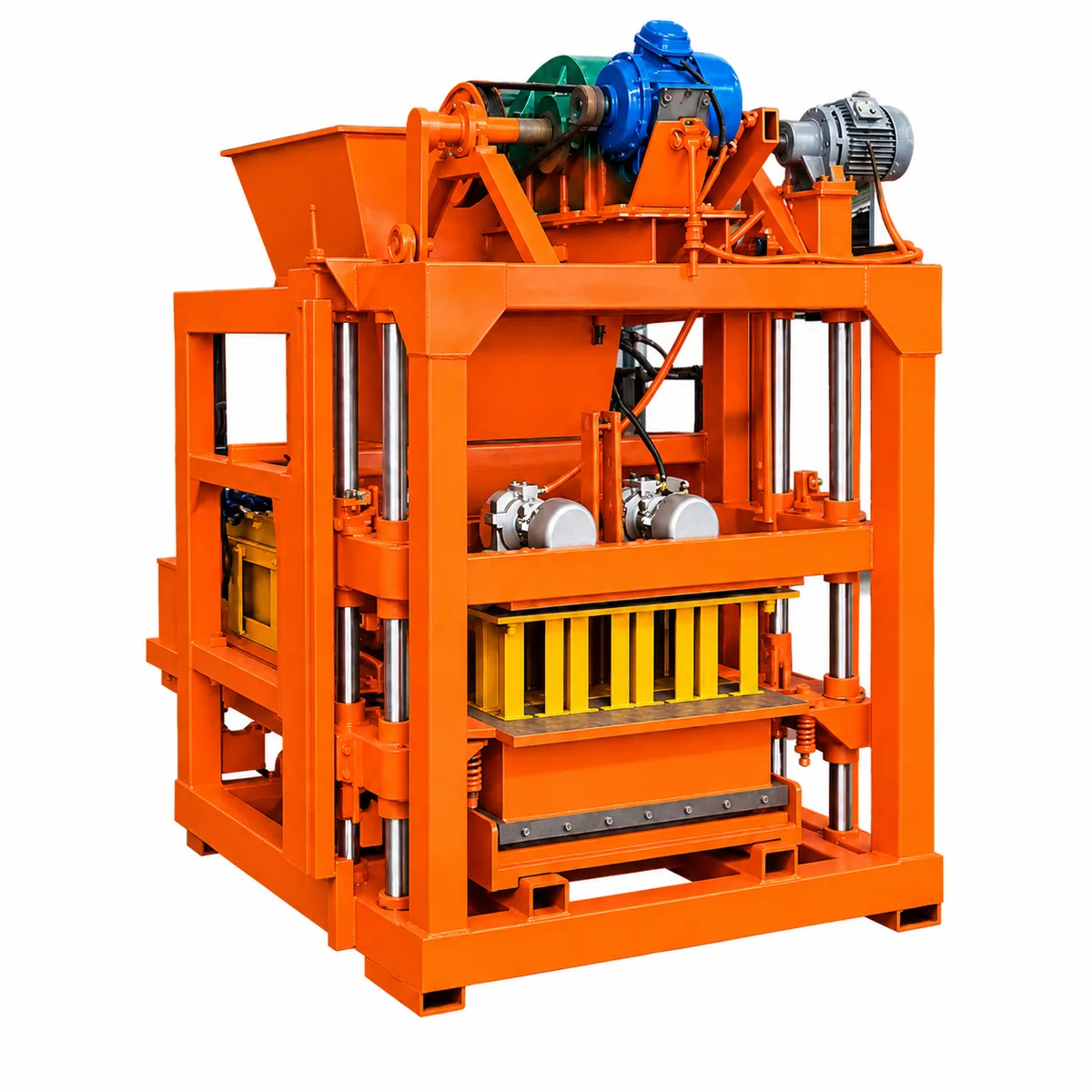

CYB-425AE	23.4 kW total · 15 MPa working pressure	380V	25 sec/cycle · fully automatic	—	1–2	195×269×211 · main system	—	400×200×200, 400×150×200, 400×100×200 mm blocks and standard bricks
CYB-260AM	Manual / mechanical	—	60 sec/cycle	300–400 cycles/8h	1–2	1600×600×1100 mm	240 kg	150×150×300 mm clay bricks · custom molds available
CYB-260AD	12 HP / 8.82 kW diesel engine	—	60 sec/cycle	300–400 cycles/shift	1–2	1350×770×1590 mm	470 kg	Interlocking and clay bricks · primarily clay materials

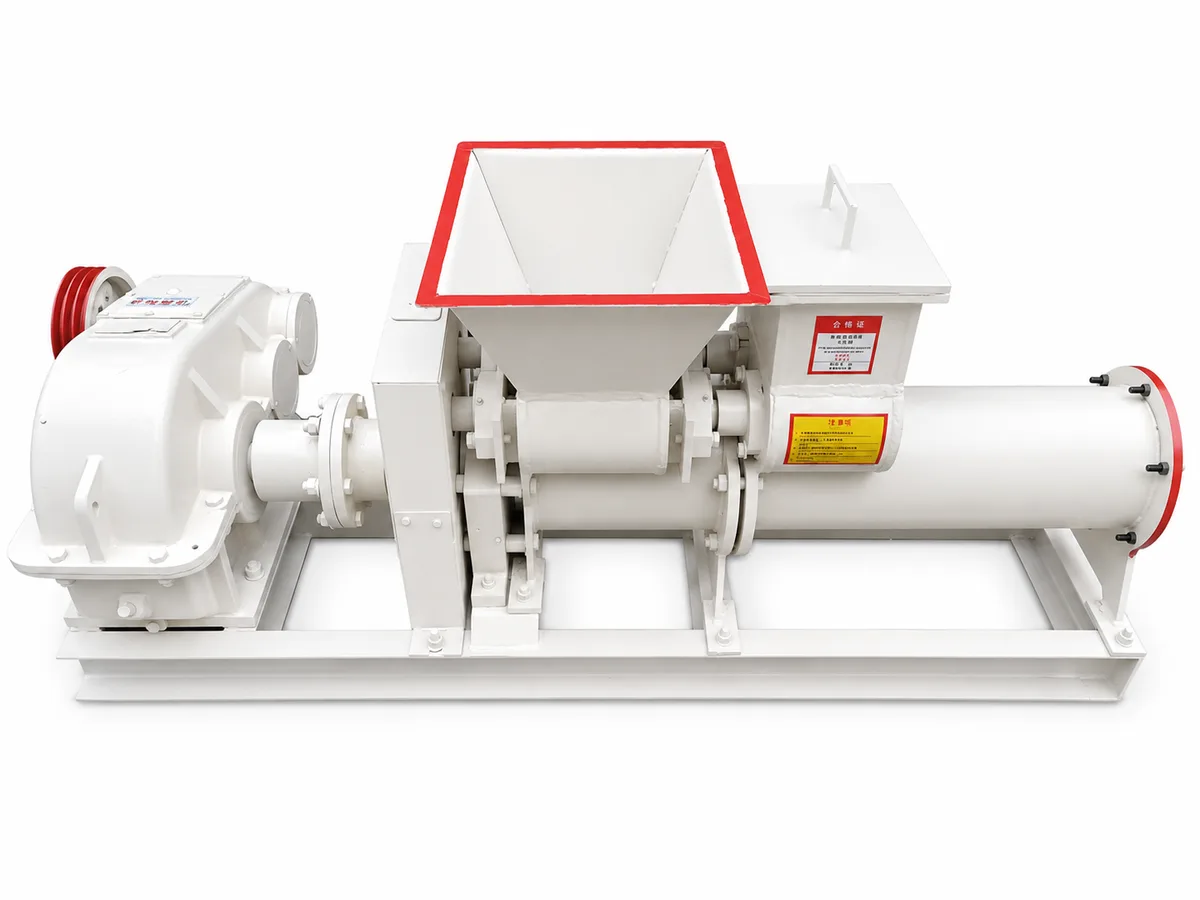

CYV-170AE	11 kW main motor + 3 kW vacuum	—	Continuous extrusion	1–2 t/h	1–2	1800×900×850 mm	700 kg	Clay bricks and ceramic materials · brick shape determined by extrusion die

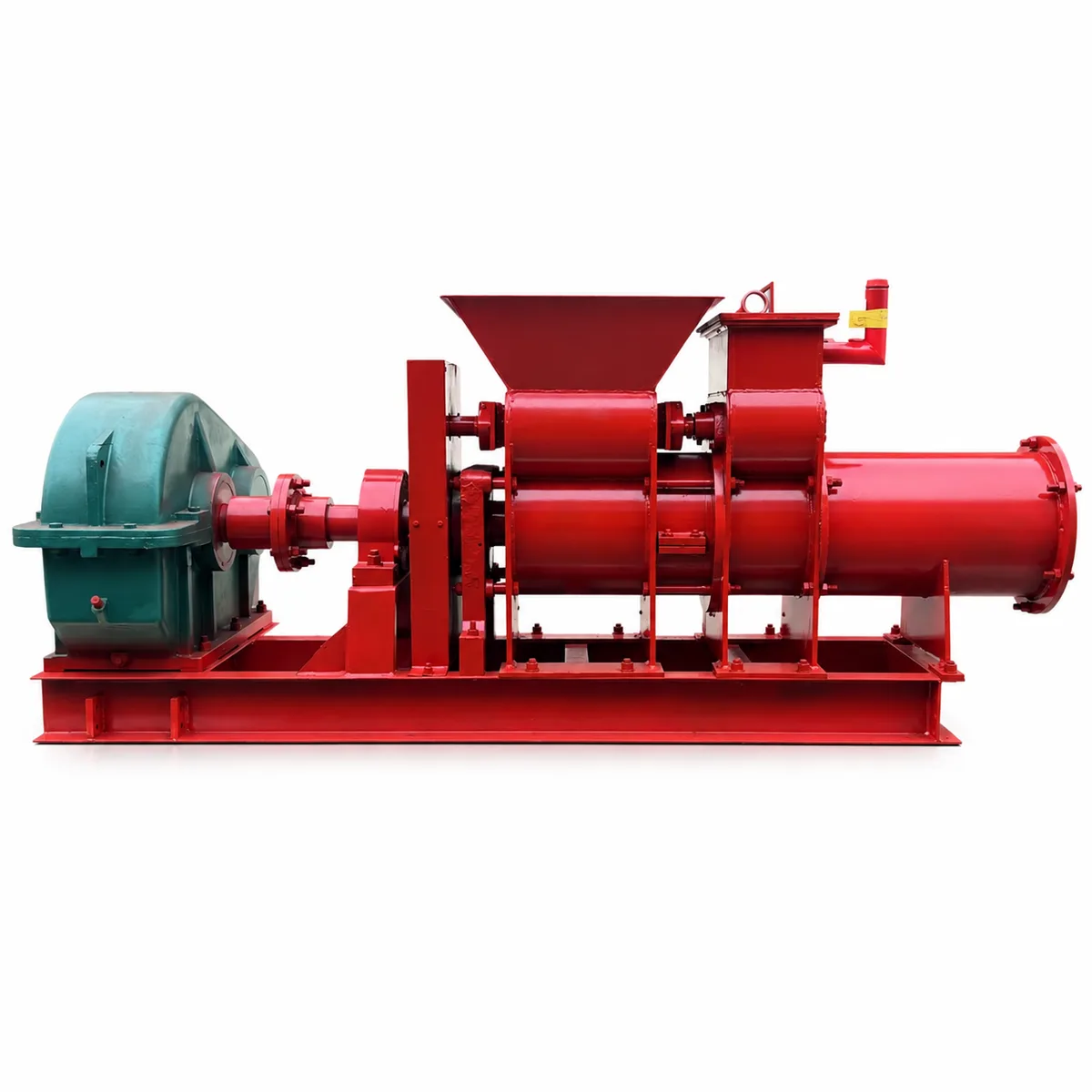

CYV-280AE	22 kW main motor + 3 kW vacuum	—	Continuous extrusion	4–5 t/h	1–2	2400×1000×1000 mm	1300 kg	Continuous clay-brick extrusion production

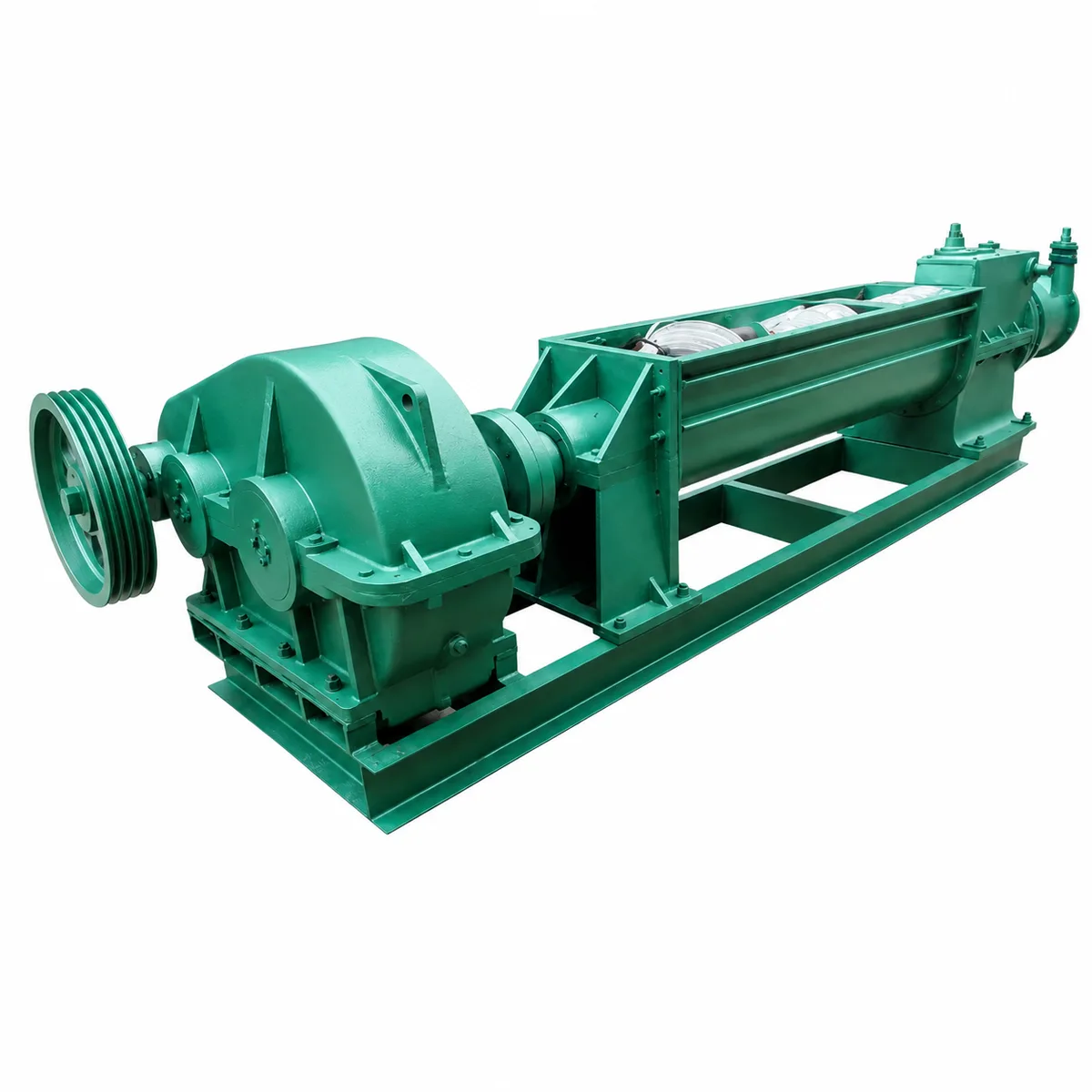

CYV-300AE	55 kW main motor + 5.5 kW vacuum	—	Continuous extrusion	6–8 t/h	1–2	4500×1500×1200 mm	3000 kg	High-output continuous clay-brick production

REAL PRODUCTION CASES

Brick Machines in Customer Production

Customer projects in the Philippines and Indonesia show how automated molding, flexible molds and stable cycles can increase output while reducing labor demand.

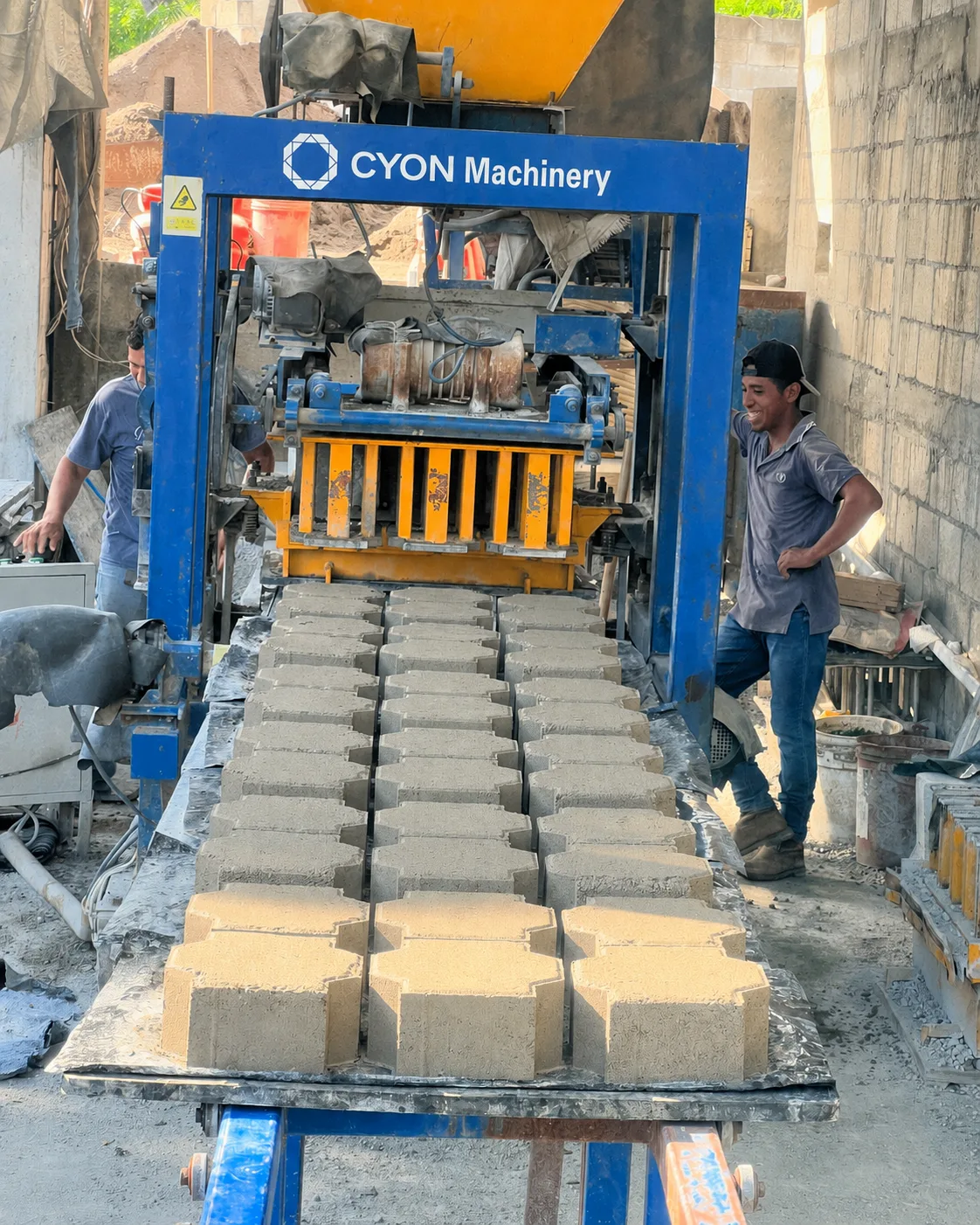

CYON brick making machine producing blocks in the Philippines — **Philippines Production Site**Automated molding and board transfer support continuous block production with fewer operators.

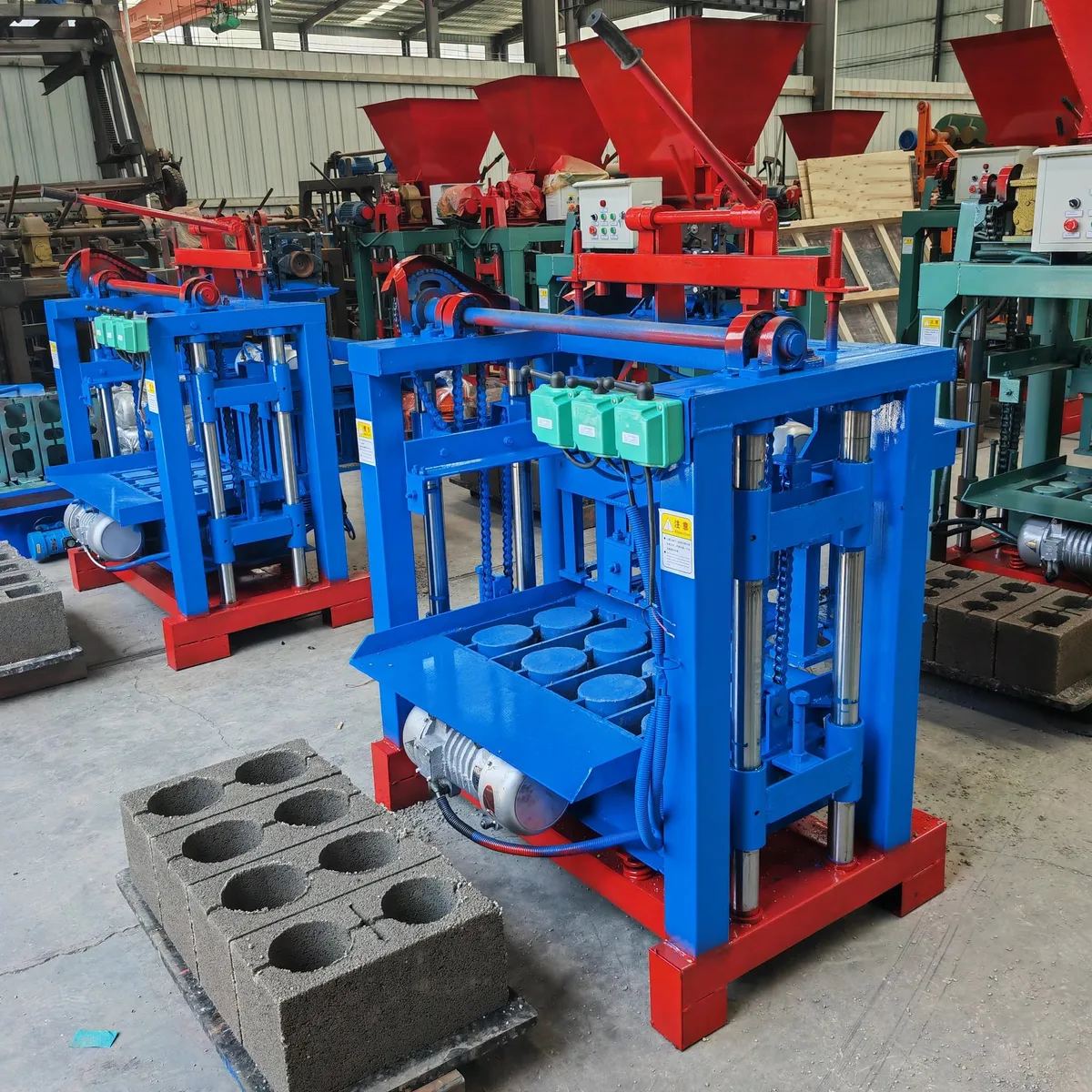

Concrete block machines prepared for customer production in Indonesia — **Indonesia Brick Production**Interchangeable molds allow local producers to respond to changing block sizes and order volumes.

PHILIPPINESCYB-425AE

Automatic Production for a Growing Block Supplier

A local building-material producer supplies concrete hollow blocks for homes, boundary walls, small commercial buildings and contractors. As orders increased, its previous small equipment could no longer meet delivery schedules, and loading, demolding, handling and sorting required too many workers.

The customer selected the fully automatic CYB-425AE with 380V electric drive, 23.4 kW total power, 15 MPa working pressure and an approximately 25-second molding cycle. Routine production requires only 1–2 operators.

Automatic molding and pallet transfer replaced repetitive manual work, allowing staff to focus on material preparation, monitoring and finished-product handling. Stable cycles improved consistency and helped the customer complete concentrated project orders faster without continually adding labor or extending working hours.

Interchangeable molds also let the producer respond to local demand: 400×200×200 mm hollow blocks form 3 pieces per cycle, 400×150×200 mm blocks form 4, 400×100×200 mm blocks form 5, and 240×50×115 mm standard bricks form 20.

25 sec/cycle1–2 Operators15 MPa PressureFlexible Molds

Higher Output · Fewer Operators · Consistent Block Quality

INDONESIACYB-435AE

Semi-automatic Production with Flexible Molds

An Indonesian building-material producer supplies hollow concrete blocks for residential, small commercial and nearby construction projects. Manual molds required several workers for feeding, forming and demolding, while daily output depended heavily on operator experience and block consistency varied between batches.

The customer selected the semi-automatic CYB-435AE with three 1.1 kW vibration motors, 4.8 / 7.3 kW total power, 220V / 380V support and an approximately 35-second cycle. The machine completes 600–800 molding cycles per shift with only 1–2 operators and processes locally available sand, gravel, cement, fly ash and slag.

Machine-controlled pressing and molding replaced repetitive manual forming. Production became more continuous, daily planning more predictable and block consistency more stable. The customer now handles concentrated orders with fewer workers and lower long-term labor costs.

Different molds support changing demand. Depending on the mold configuration, each cycle produces 2–4 blocks at 400×200×200 mm, 3–5 at 400×150×200 mm, or 4–7 at 400×100×200 mm.

600–800 Cycles35 sec/cycle1–2 OperatorsMultiple Brick Sizes

Less Manual Work · Stable Daily Output · Faster Order Fulfillment

GLOBAL PARTNER PROGRAM

CYON TECH Dealer Cooperation Policy

Three cooperation levels support market testing, established local sales channels and long-term regional development.

Program Item	ATrial Dealer	BAuthorized Dealer	CCore Regional Dealer
Cooperation Position	Market testing and small-volume sales	Primary local sales partner	Long-term regional strategic partner
Application Requirements	First order 1–2 units; local customer resources; basic product training	First order 3–5 units; stable sales channel; continued annual purchasing; basic after-sales support	Company, warehouse, sales team and service staff; long-term stock; annual target commitment
Dealer Pricing	CYON TECH standard dealer price D1	Additional 3%–5% discount from D1	Additional 6%–10% discount from D1; special pricing for major projects
Inventory	No mandatory stock	Recommended stock of 1–2 popular models	Core models and common spare parts must be stocked
Regional Protection	No exclusive protection	May apply for city or provincial customer protection	May apply for provincial or regional protection; exclusivity available after annual targets are achieved
Customer Protection	Registered dealer-developed customers receive a protection period	Registered customers receive dealer priority	Inquiries from the protected region are prioritized to the core dealer
Demo Machine Support	Purchased at dealer price	Special discount for display machines	Lower display pricing may be requested for showrooms, exhibitions and demonstrations
Logo & Appearance	Available for batch orders	Color, logo, nameplate and packaging customization	Dealer-brand OEM, dual branding and regional packaging
Marketing Support	Photos, videos, specifications and e-catalogs	Local-language ads, videos, posters and social content	Joint local marketing plan plus exhibition, advertising and demo support
Sales Training	Basic product and quotation training	Selection, quotation, sales and application training	Dedicated training on selection, competition, negotiation and project solutions
Technical Training	Online operation guidance	Operation, maintenance and troubleshooting training	Local after-sales engineer training to build service capability
After-sales Response	Remote CYON TECH technical support	Priority technical response	Highest-priority support and dedicated service for major projects
Warranty Support	Standard warranty policy	Standard warranty with priority handling	Extended warranty or tailored policy based on annual purchasing
Spare Parts Policy	Standard dealer parts price	Additional discount on common parts	Highest parts discount and local inventory support
Initial Spare Parts	Standard spare-parts package available	Discounted package supplied with first order	Common wear parts provided free or at preferential price based on order volume
Fault Handling	Remote diagnosis by video and photos	Priority diagnosis and fast parts arrangement	Local dealer handles first response with CYON TECH technical and parts backup
Warranty Repair Cost	Standard warranty terms	Free parts for confirmed quality issues	Parts and reasonable local repair costs may be covered for confirmed quality issues
Parts Dispatch	Standard arrangement	In-stock parts dispatched with priority	Highest priority for core-dealer parts orders
New Product Policy	Open purchasing	Priority trial sales	Priority agency rights and sample testing
Production Scheduling	Standard scheduling	Priority scheduling	Priority production and container loading during peak season
Payment Terms	30%–50% deposit; balance before shipment	Improved terms may be requested after long-term cooperation	Special terms may be requested based on purchase scale and credit history
Project Price Protection	Available on request	Exclusive pricing available for major projects	Factory floor pricing available for major tenders and engineering procurement
Annual Rebate	Not available	Rebate after annual sales target is achieved	Tiered rebates and market incentives based on annual purchasing
Upgrade Mechanism	Upgrade to B after purchase target	Upgrade to C after sales, stock and service requirements	Annual review based on sales, market investment and service quality

Apply to Become a Dealer

FREQUENTLY ASKED QUESTIONS

Questions Before You Order

Clear answers covering supplier capabilities, OEM/ODM, ordering, shipping, training and distributor cooperation.

Are you a manufacturer or a trading company?

We are a construction machinery supplier from China, providing equipment selection, customization, export packaging, international shipping support, spare parts and after-sales technical service.

Can I customize the equipment with my own brand (OEM/ODM)?

Yes. We support OEM/ODM cooperation, including machine color, logo, nameplate, packaging and selected configurations. Customized solutions can also be provided for distributors and bulk orders.

What is your Minimum Order Quantity (MOQ)?

Most models support small-quantity trial orders. New customers and dealers can start with a trial order before expanding to larger-volume cooperation.

How do I choose the right machine for my project?

Tell us your application, required capacity, working conditions, power supply, destination country and budget. Our sales team will recommend a suitable model and configuration.

How do you handle international shipping and logistics?

We can arrange export packaging and provide international shipping solutions according to the destination. Different transportation options can be discussed based on equipment size, quantity and customer requirements.

Will my operators know how to use the machine?

Yes. We provide operation manuals, instructional videos and remote technical guidance. Our team can also assist with installation, operation, daily maintenance and troubleshooting.

What payment terms do you support?

Payment terms depend on the order value, equipment type and cooperation model. Standard orders are normally arranged with a deposit and balance payment before shipment.

Can I become a CYON TECH distributor?

Yes. We welcome distributors and local partners worldwide. Qualified dealers can receive factory pricing, marketing materials, technical training, spare-parts support, customization and regional market protection.
