Putty Spraying Equipment Series

Home›Putty Spraying Equipment Series

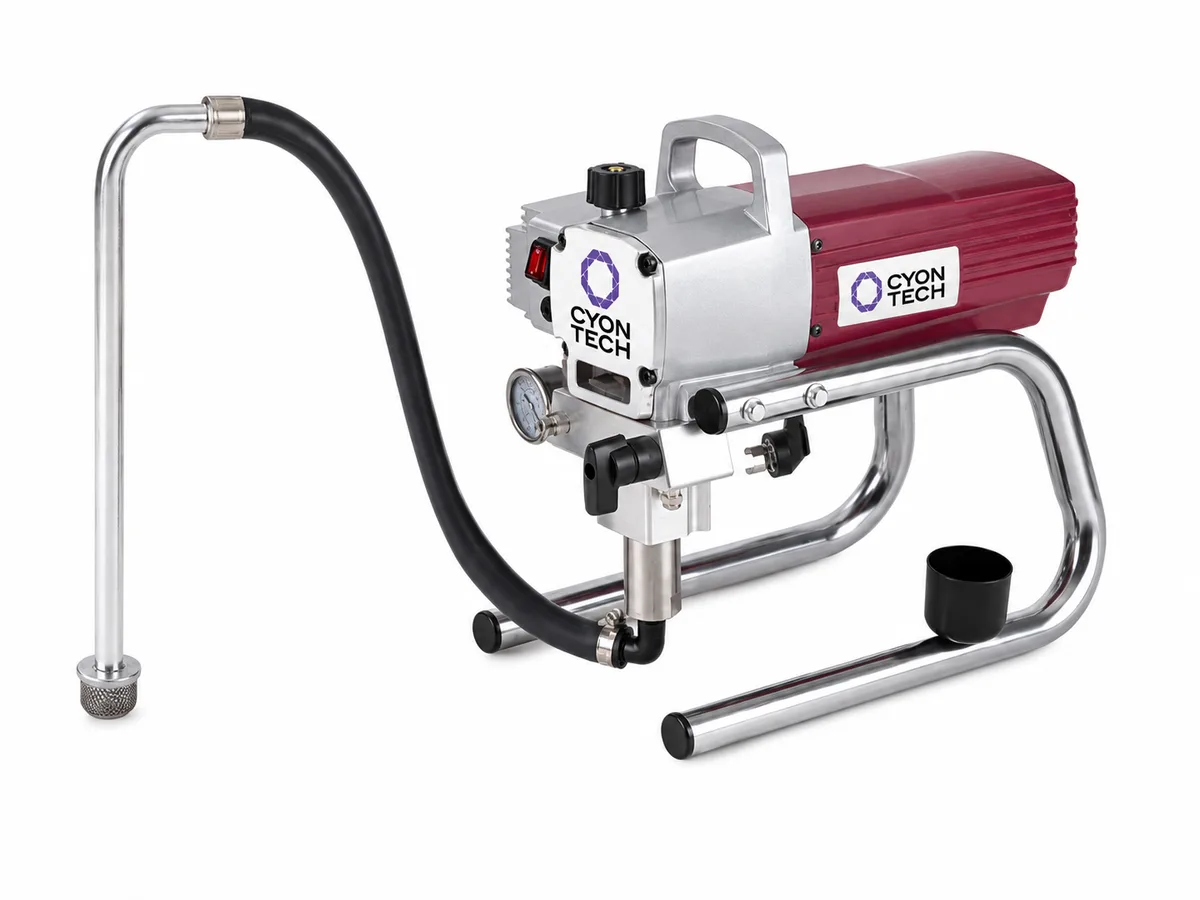

CYP-450AE

AIRLESS & HIGH-PRESSURE SPRAYING

Spraying Equipment from Portable Units to High-output Systems

CYON TECH CYP spraying equipment ranges from compact portable units to high-flow, high-pressure machines. Main power spans 750W–5.5 kW, with additional 9 HP and 13 HP gasoline or diesel configurations.

Working pressure ranges from 200 bar to 50 MPa, output from 1.7–15.5 L/min, and selected high-pressure models support nozzle sizes up to 0.027 inch. Electric options include 110V, 220–240V and 380V, while machine weights from 18–135 kg support both portable work and continuous high-intensity spraying.

750W–5.5kWElectric Power

50 MPaMax. Pressure

15.5 L/minMax. Flow

18–135 kgWeight Range

Request Model Recommendation

DETAILED PARAMETERS

Putty and Coating Sprayer Specifications

Compare power, pressure, output, nozzle capacity, dimensions and compatible materials across twelve electric, gasoline and diesel models.

Model	Main Power	Voltage / Configuration	Heater Power	Max. Pressure	Flow	Max. Nozzle	Weight	Dimensions	Compatible Materials
CYP-450AE	1500W	220–240V / 50Hz	—	200 bar / 2900 psi	2.3 L/min	0.023 in	19 kg	51×42×50 cm	Latex paint, primer, interior/exterior coatings and waterproof coatings with low or medium viscosity

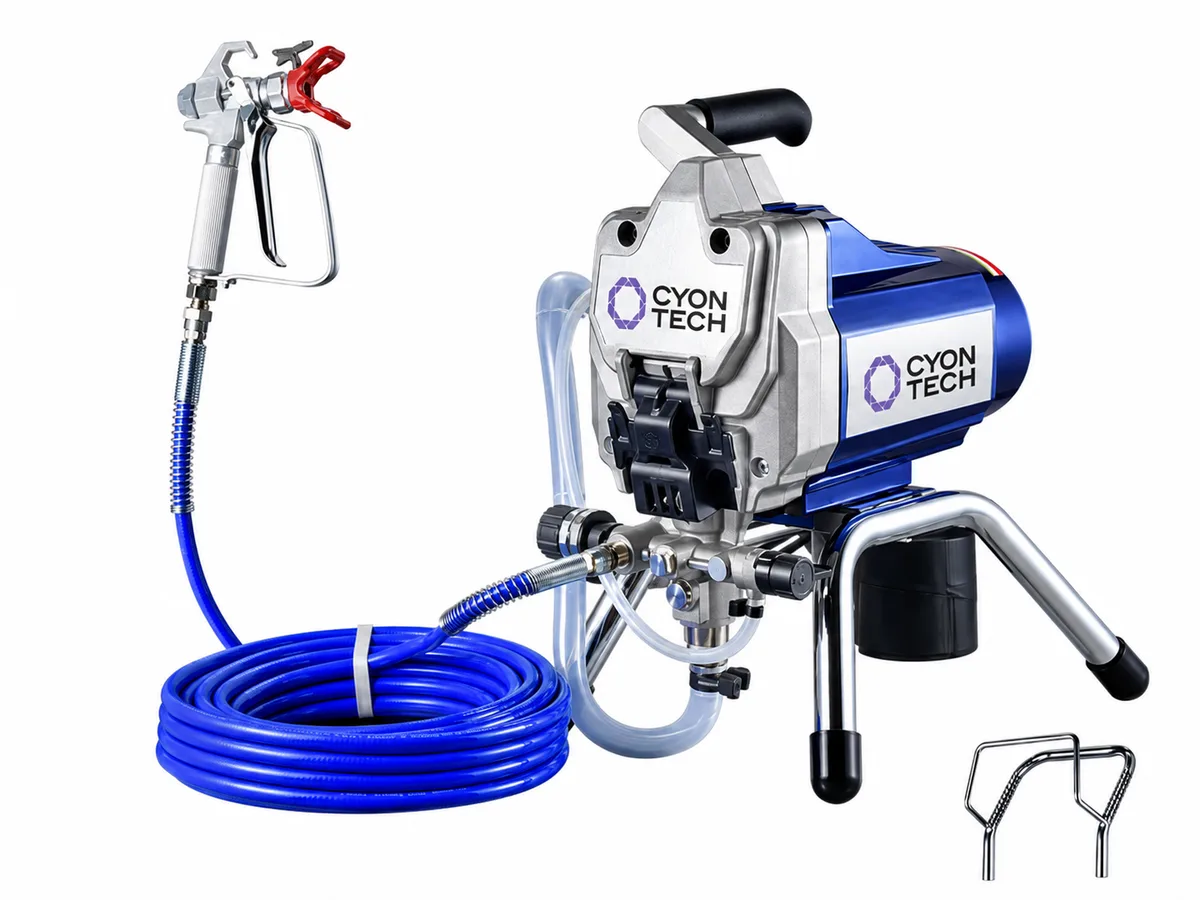

CYP-G20AE	750W	220–240V 50Hz / 110V 60Hz	—	200 bar / 2900 psi	1.7 L/min	519 spray tip	18 kg	45×34×56 cm	Latex paint, primer and interior/exterior coatings with low or medium viscosity

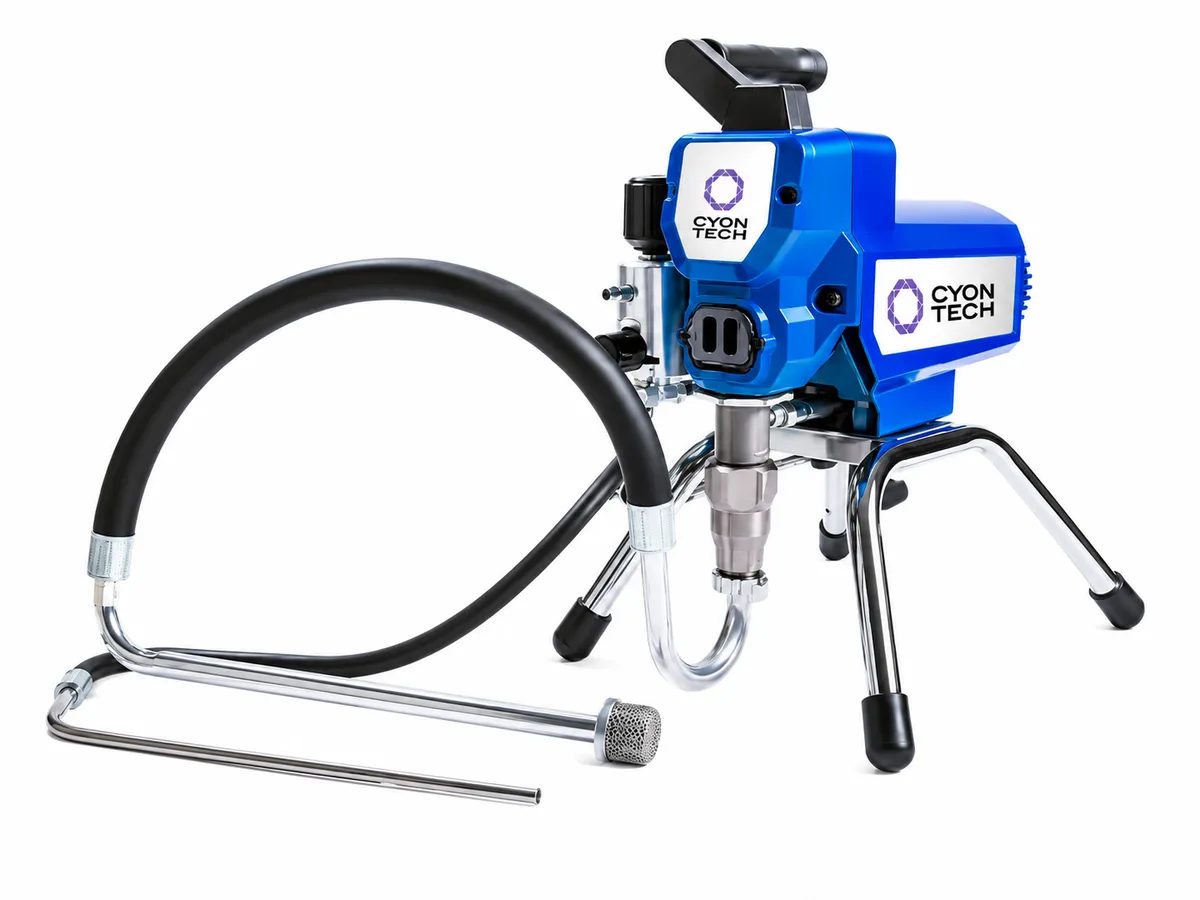

CYP-3900AE	1100W	220–240V / 50Hz	—	200 bar / 2900 psi	2.0 L/min	0.021 in	21 kg	52×44×48 cm	Latex paint, primer, interior/exterior coatings and waterproof coatings

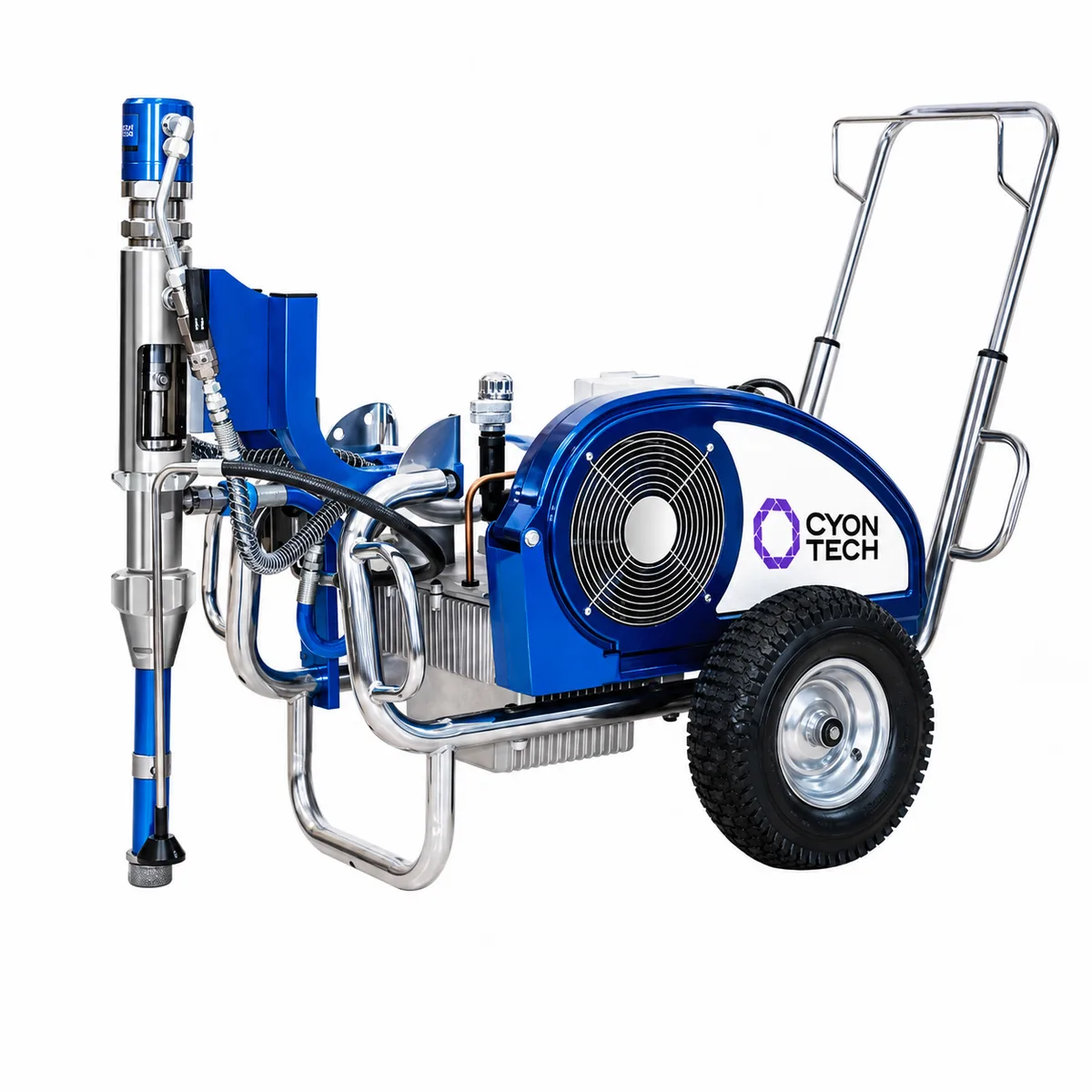

CYP-Q8AD	13 HP	Subaru diesel engine	—	250 bar / 3600 psi	15.5 L/min	0.025 / 0.023 / 0.021 in	96 kg	112×80×115 cm	Putty, latex paint, primer, waterproof and wall coatings, plus selected high-viscosity coatings
CYP-Q8AE	5500W	380V	—	250 bar / 3600 psi	14 L/min	0.025 / 0.023 / 0.021 in	88 kg	112×80×115 cm	Putty, latex paint, primer, waterproof and wall coatings, plus selected high-viscosity coatings
CYP-Q8AG	9 HP	Honda gasoline engine	—	250 bar / 3600 psi	14 L/min	0.025 / 0.023 / 0.021 in	93 kg	112×80×115 cm	Putty, latex paint, primer, waterproof and wall coatings, plus selected high-viscosity coatings
CYP-Q8BE	5000W	220V	—	250 bar / 3600 psi	13.3 L/min	0.025 / 0.023 / 0.021 in	83 kg	112×80×115 cm	Putty, latex paint, primer, waterproof and wall coatings, plus selected high-viscosity coatings

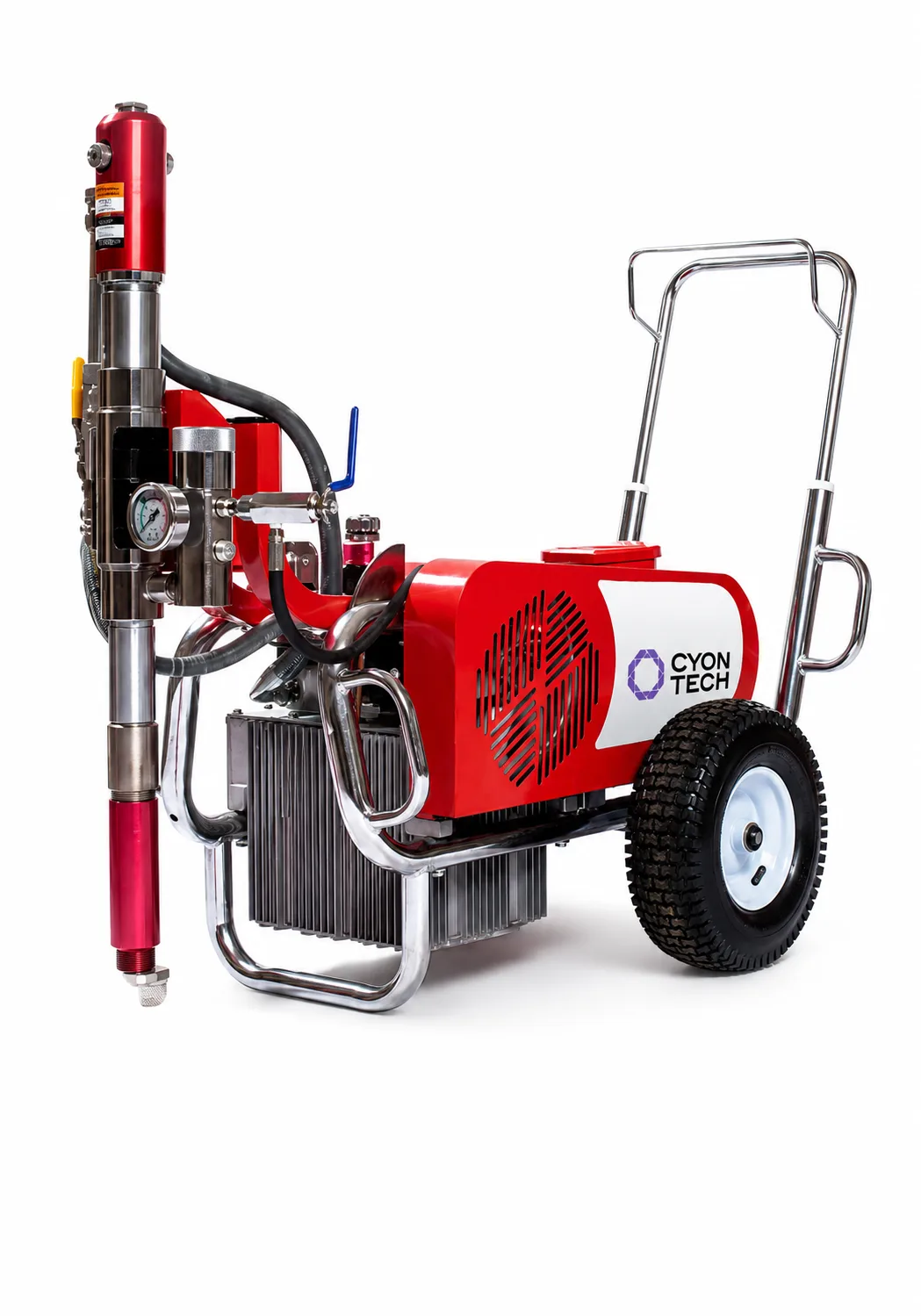

CYP-980AE	5000W	220V	—	25 MPa	10.33 L/min	—	88 kg	121×80×115 cm	Putty, latex paint, primer, waterproof and wall coatings, plus selected high-viscosity materials
CYP-980BE	5500W	380V	—	25 MPa	13.5 L/min	—	90 kg	121×80×115 cm	Putty, latex paint, primer, waterproof and wall coatings, plus selected high-viscosity materials
CYP-980AG	9 HP	Honda gasoline engine	—	25 MPa	13.5 L/min	—	95 kg	121×80×115 cm	Putty, latex paint, primer, waterproof and wall coatings, plus selected high-viscosity materials
CYP-980AD	13 HP	Diesel engine	—	25 MPa	15 L/min	—	98 kg	121×80×115 cm	Putty, latex paint, primer, waterproof and wall coatings, plus selected high-viscosity materials
CYP-G5AE	5 kW	220V	3.5 kW / 220V	50 MPa	5 L/min	0.027 in	135 kg	120×80×115 cm	Putty, latex paint, waterproof coatings and selected high-viscosity coatings; special materials require process confirmation

REAL PROJECT CASE

Putty Spraying for Residential and Commercial Interiors in Afghanistan

A building contractor adopted the CYP-980AE to speed up large wall projects, reduce repeated material handling and keep daily progress more consistent.

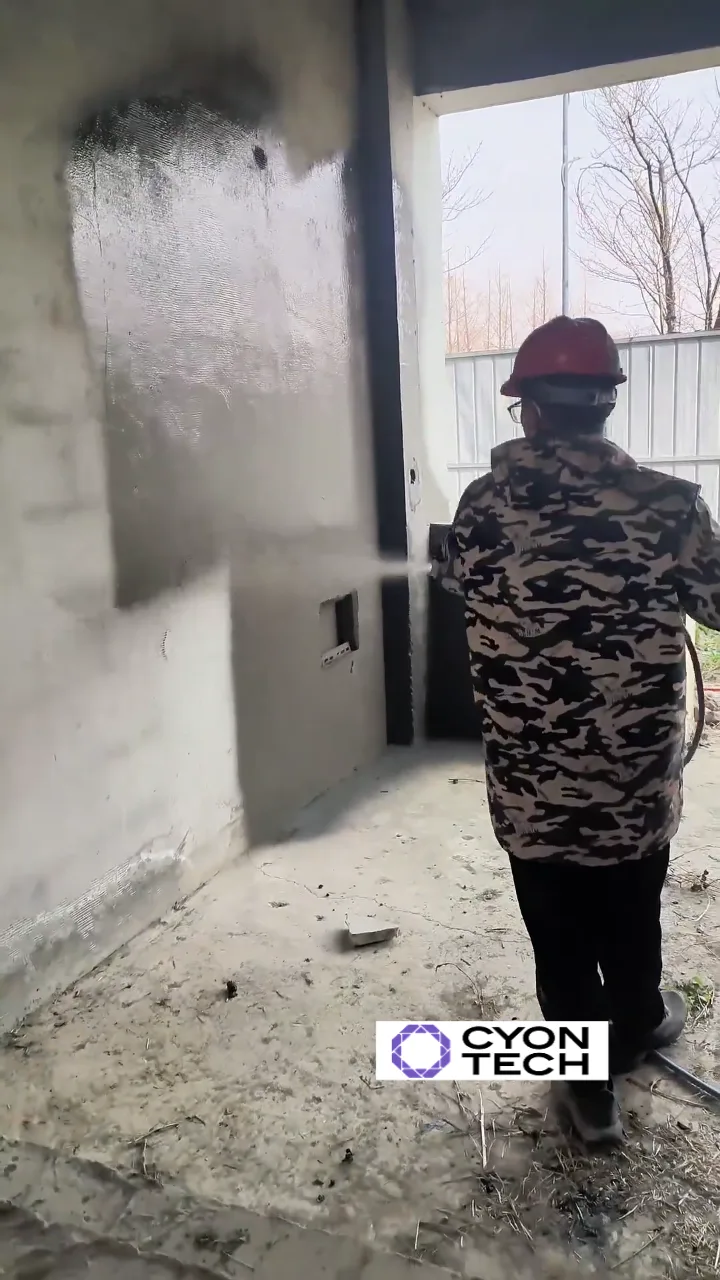

CYP putty sprayer handling prepared wall material on site — **Direct Material Feeding**Prepared coating material is delivered through the high-pressure hose to the spray gun position.

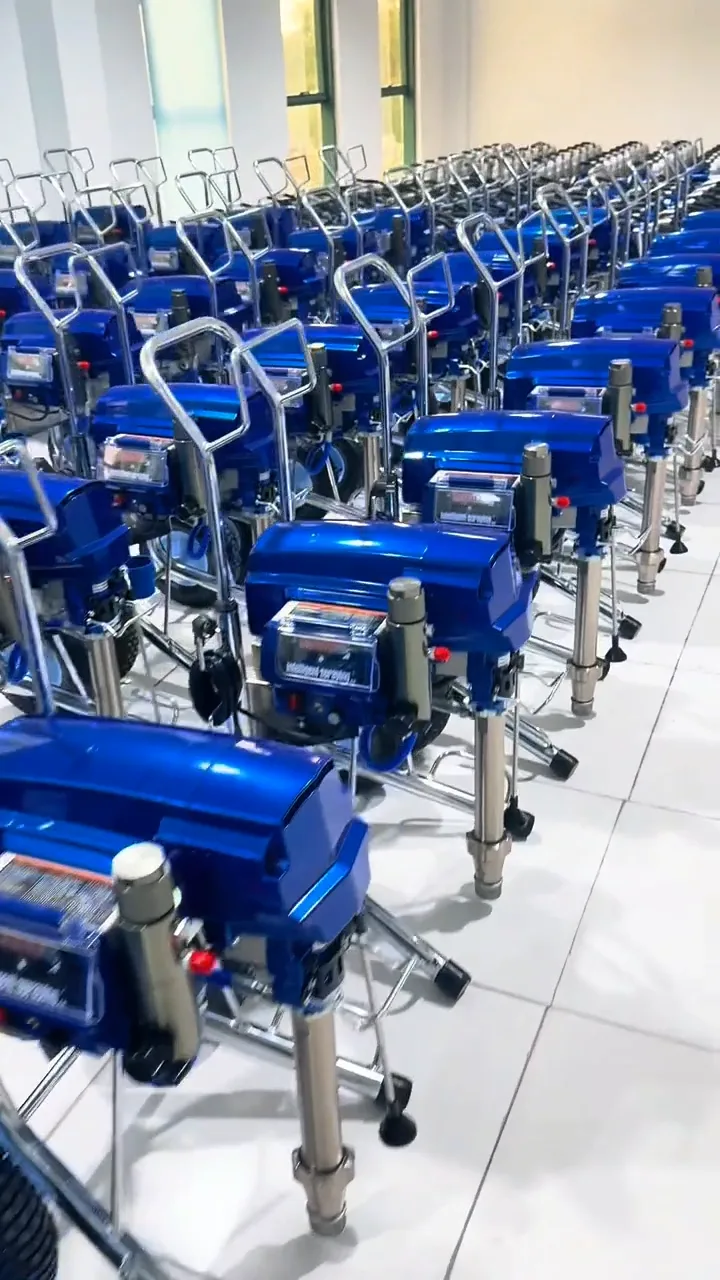

Putty spraying on an interior wall in Afghanistan — **Continuous Wall Spraying**Consistent coverage helps the crew move efficiently through large interior wall areas.

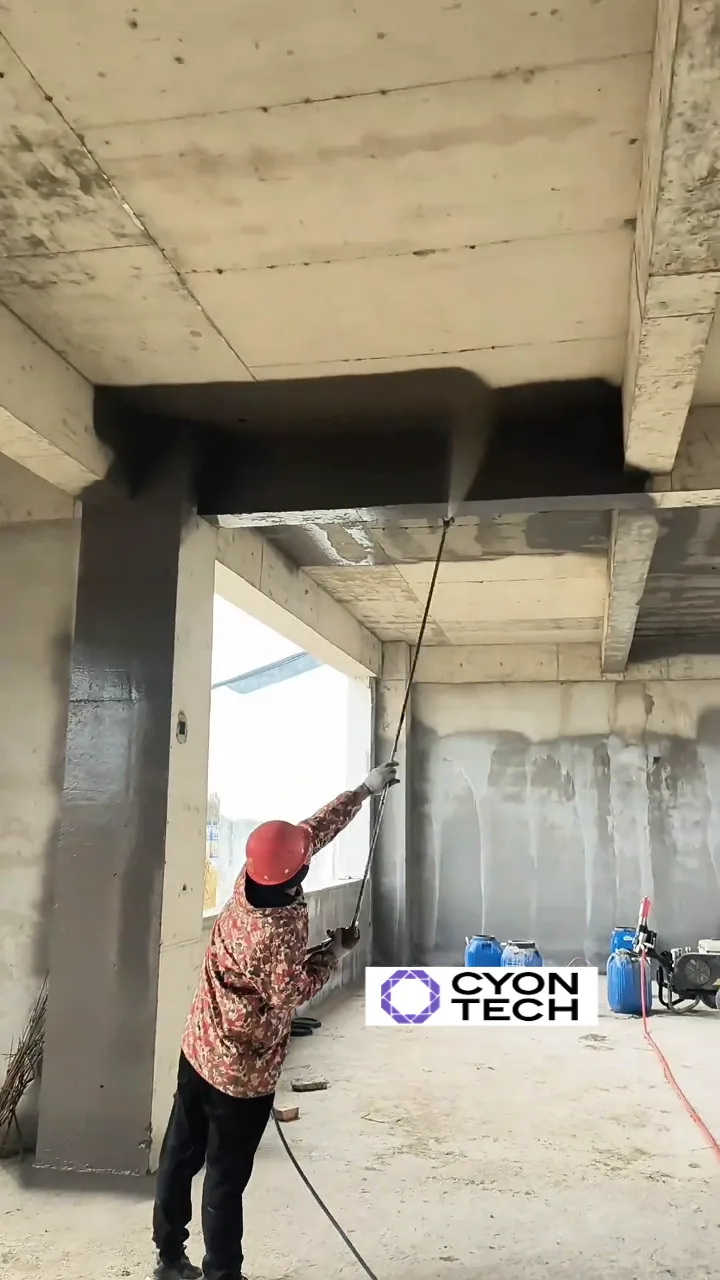

Worker spraying columns and beams with a CYON TECH putty sprayer — **Flexible Interior Application**The hose follows the operator across walls, columns and overhead structural surfaces.

AFGHANISTANCYP-980AE

Faster Wall Finishing with Less Repeated Manual Work

An Afghan contractor works on interior and exterior walls for homes, shops and small commercial buildings. Putty had previously been applied mainly by hand, requiring more workers for mixing, carrying, feeding and repeated coating across large surfaces. Project schedules were therefore highly dependent on crew size.

The customer selected the electric CYP-980AE with 5000W power, a 220V supply, maximum pressure of 25 MPa and output of 10.33 L/min. Its stable pressure and high flow support the continuous delivery of putty and selected high-viscosity wall materials.

Prepared material can now travel directly through the high-pressure hose to the spray gun. The crew focuses on machine feeding, spraying, leveling and final finishing instead of repeatedly moving material by hand. The wheeled unit and adjustable hose routing also simplify relocation as the work area changes.

Continuous and even application has increased wall coverage while reducing repetitive labor. The contractor can complete more work with fewer people, keep daily progress steadier and release follow-on finishing trades sooner.

5000W Power220V Supply25 MPa Pressure10.33 L/min

Faster Coverage · Less Repeated Labor · More Consistent Progress

GLOBAL PARTNER PROGRAM

CYON TECH Dealer Cooperation Policy

Three cooperation levels support market testing, established local sales channels and long-term regional development.

Program Item	ATrial Dealer	BAuthorized Dealer	CCore Regional Dealer
Cooperation Position	Market testing and small-volume sales	Primary local sales partner	Long-term regional strategic partner
Application Requirements	First order 1–2 units; local customer resources; basic product training	First order 3–5 units; stable sales channel; continued annual purchasing; basic after-sales support	Company, warehouse, sales team and service staff; long-term stock; annual target commitment
Dealer Pricing	CYON TECH standard dealer price D1	Additional 3%–5% discount from D1	Additional 6%–10% discount from D1; special pricing for major projects
Inventory	No mandatory stock	Recommended stock of 1–2 popular models	Core models and common spare parts must be stocked
Regional Protection	No exclusive protection	May apply for city or provincial customer protection	May apply for provincial or regional protection; exclusivity available after annual targets are achieved
Customer Protection	Registered dealer-developed customers receive a protection period	Registered customers receive dealer priority	Inquiries from the protected region are prioritized to the core dealer
Demo Machine Support	Purchased at dealer price	Special discount for display machines	Lower display pricing may be requested for showrooms, exhibitions and demonstrations
Logo & Appearance	Available for batch orders	Color, logo, nameplate and packaging customization	Dealer-brand OEM, dual branding and regional packaging
Marketing Support	Photos, videos, specifications and e-catalogs	Local-language ads, videos, posters and social content	Joint local marketing plan plus exhibition, advertising and demo support
Sales Training	Basic product and quotation training	Selection, quotation, sales and application training	Dedicated training on selection, competition, negotiation and project solutions
Technical Training	Online operation guidance	Operation, maintenance and troubleshooting training	Local after-sales engineer training to build service capability
After-sales Response	Remote CYON TECH technical support	Priority technical response	Highest-priority support and dedicated service for major projects
Warranty Support	Standard warranty policy	Standard warranty with priority handling	Extended warranty or tailored policy based on annual purchasing
Spare Parts Policy	Standard dealer parts price	Additional discount on common parts	Highest parts discount and local inventory support
Initial Spare Parts	Standard spare-parts package available	Discounted package supplied with first order	Common wear parts provided free or at preferential price based on order volume
Fault Handling	Remote diagnosis by video and photos	Priority diagnosis and fast parts arrangement	Local dealer handles first response with CYON TECH technical and parts backup
Warranty Repair Cost	Standard warranty terms	Free parts for confirmed quality issues	Parts and reasonable local repair costs may be covered for confirmed quality issues
Parts Dispatch	Standard arrangement	In-stock parts dispatched with priority	Highest priority for core-dealer parts orders
New Product Policy	Open purchasing	Priority trial sales	Priority agency rights and sample testing
Production Scheduling	Standard scheduling	Priority scheduling	Priority production and container loading during peak season
Payment Terms	30%–50% deposit; balance before shipment	Improved terms may be requested after long-term cooperation	Special terms may be requested based on purchase scale and credit history
Project Price Protection	Available on request	Exclusive pricing available for major projects	Factory floor pricing available for major tenders and engineering procurement
Annual Rebate	Not available	Rebate after annual sales target is achieved	Tiered rebates and market incentives based on annual purchasing
Upgrade Mechanism	Upgrade to B after purchase target	Upgrade to C after sales, stock and service requirements	Annual review based on sales, market investment and service quality

Apply to Become a Dealer

FREQUENTLY ASKED QUESTIONS

Questions Before You Order

Clear answers covering supplier capabilities, OEM/ODM, ordering, shipping, training and distributor cooperation.

Are you a manufacturer or a trading company?

We are a construction machinery supplier from China, providing equipment selection, customization, export packaging, international shipping support, spare parts and after-sales technical service.

Can I customize the equipment with my own brand (OEM/ODM)?

Yes. We support OEM/ODM cooperation, including machine color, logo, nameplate, packaging and selected configurations. Customized solutions can also be provided for distributors and bulk orders.

What is your Minimum Order Quantity (MOQ)?

Most models support small-quantity trial orders. New customers and dealers can start with a trial order before expanding to larger-volume cooperation.

How do I choose the right machine for my project?

Tell us your application, required capacity, working conditions, power supply, destination country and budget. Our sales team will recommend a suitable model and configuration.

How do you handle international shipping and logistics?

We can arrange export packaging and provide international shipping solutions according to the destination. Different transportation options can be discussed based on equipment size, quantity and customer requirements.

Will my operators know how to use the machine?

Yes. We provide operation manuals, instructional videos and remote technical guidance. Our team can also assist with installation, operation, daily maintenance and troubleshooting.

What payment terms do you support?

Payment terms depend on the order value, equipment type and cooperation model. Standard orders are normally arranged with a deposit and balance payment before shipment.

Can I become a CYON TECH distributor?

Yes. We welcome distributors and local partners worldwide. Qualified dealers can receive factory pricing, marketing materials, technical training, spare-parts support, customization and regional market protection.
