CYM-55AE

MORTAR DELIVERY & SPRAYING

Electric and Diesel Solutions for Faster Wall Plastering

CYON TECH CYM mortar spraying machines are available in electric and diesel configurations, with construction efficiency from 100–400 m²/h. The series delivers mortar up to 40 m vertically and 80 m horizontally for residential, factory and commercial wall-plastering projects.

Normal operation requires only 2–3 people. Direct pipeline delivery reduces manual transport and wall application, helping crews maintain a continuous spraying rhythm and move more labor to leveling, finishing and other essential work.

100–400m²/h Efficiency

40 mMax. Vertical

80 mMax. Horizontal

2–3Operators

Request Model Recommendation

DETAILED PARAMETERS

Mortar Spraying Machine Specifications

Compare electric and diesel drive systems, spraying efficiency, delivery distance, aggregate capacity and shipping dimensions.

Model	Drive	Compressor	Main Motor / Engine	Voltage	Efficiency	Vertical	Horizontal	Max. Particle	Pack Size	Pack Weight

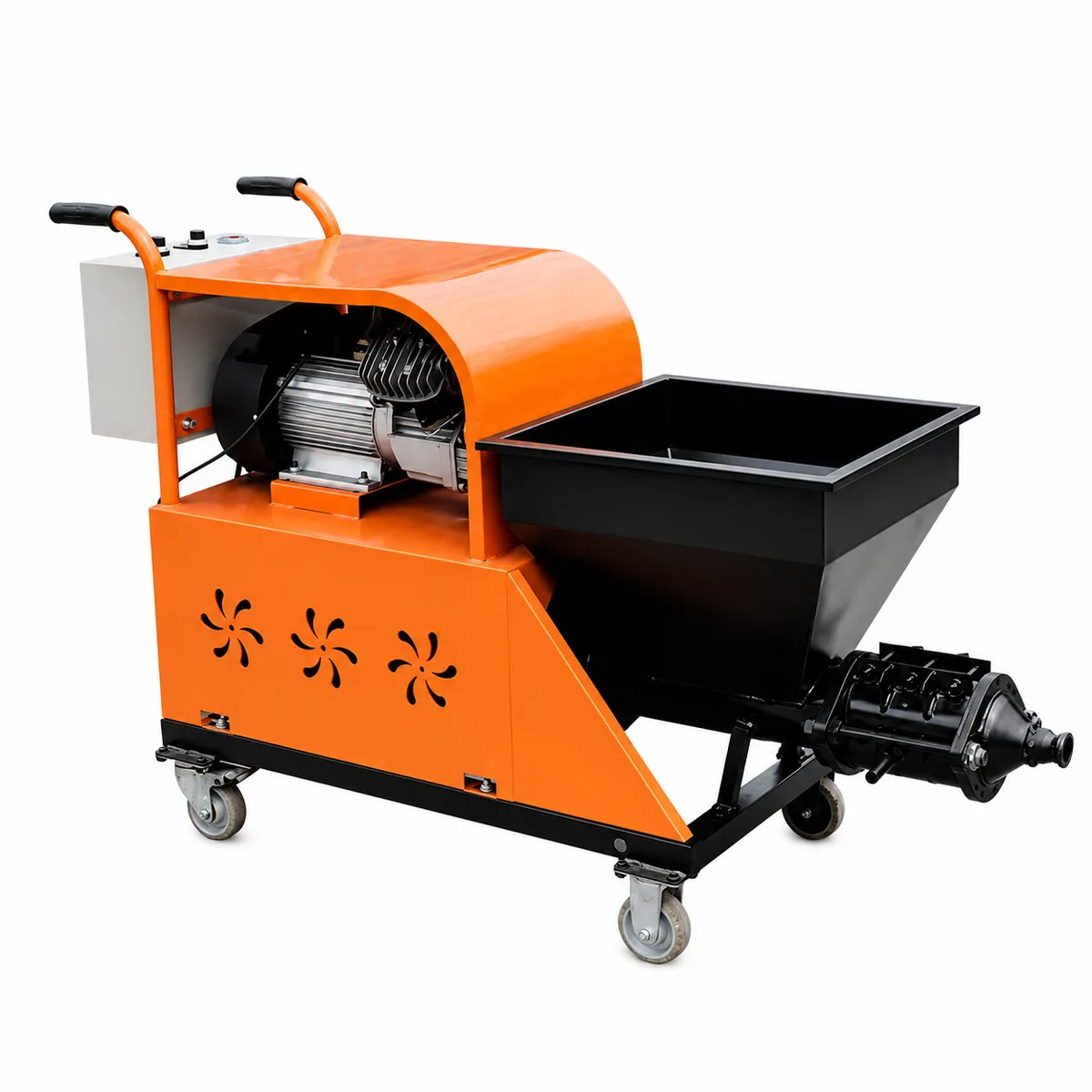

CYM-55AE	Electric	2.2 kW	5.5 kW	220V / 380V optional	100–150 m²/h	10–15 m	15–30 m	<8 mm	1.55×0.55×0.9 m	180 kg

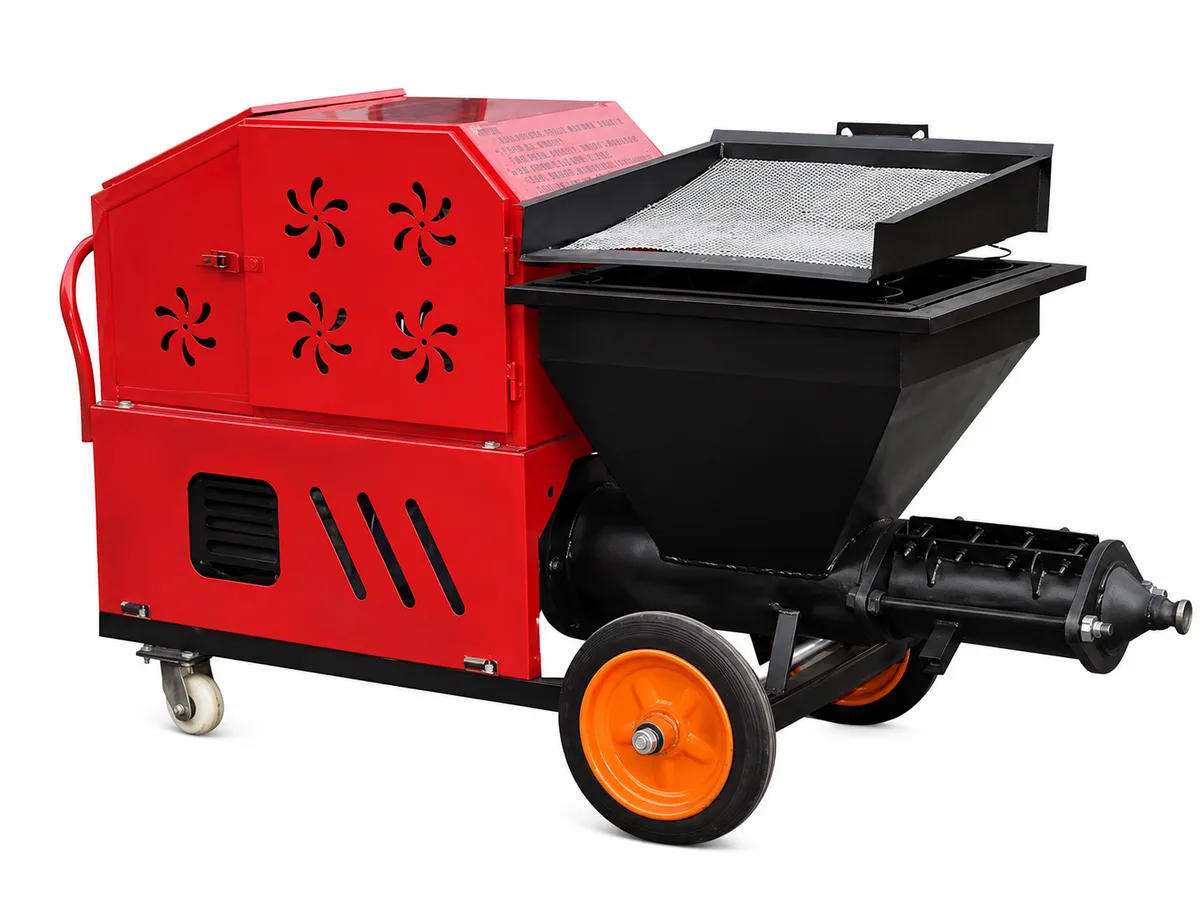

CYM-75AE	Electric	2.2 kW	7.5 kW	220V / 380V optional	140–180 m²/h	15–20 m	10–50 m	<8 mm	1.65×0.55×0.95 m	260 kg

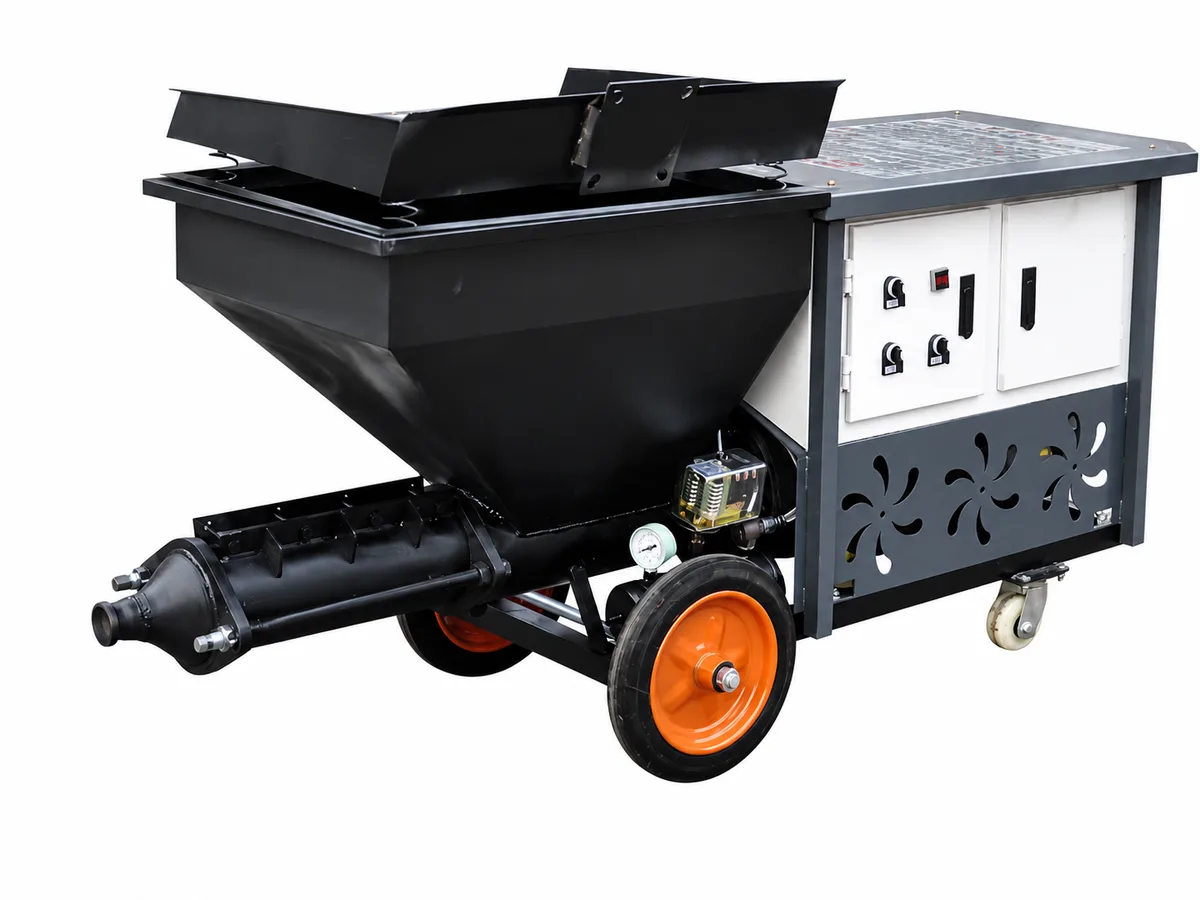

CYM-90AE	Electric	Four-cylinder silent compressor	9 kW	380V	200 m²/h	10–25 m	10–60 m	<8 mm	1.75×0.65×0.9 m	280 kg

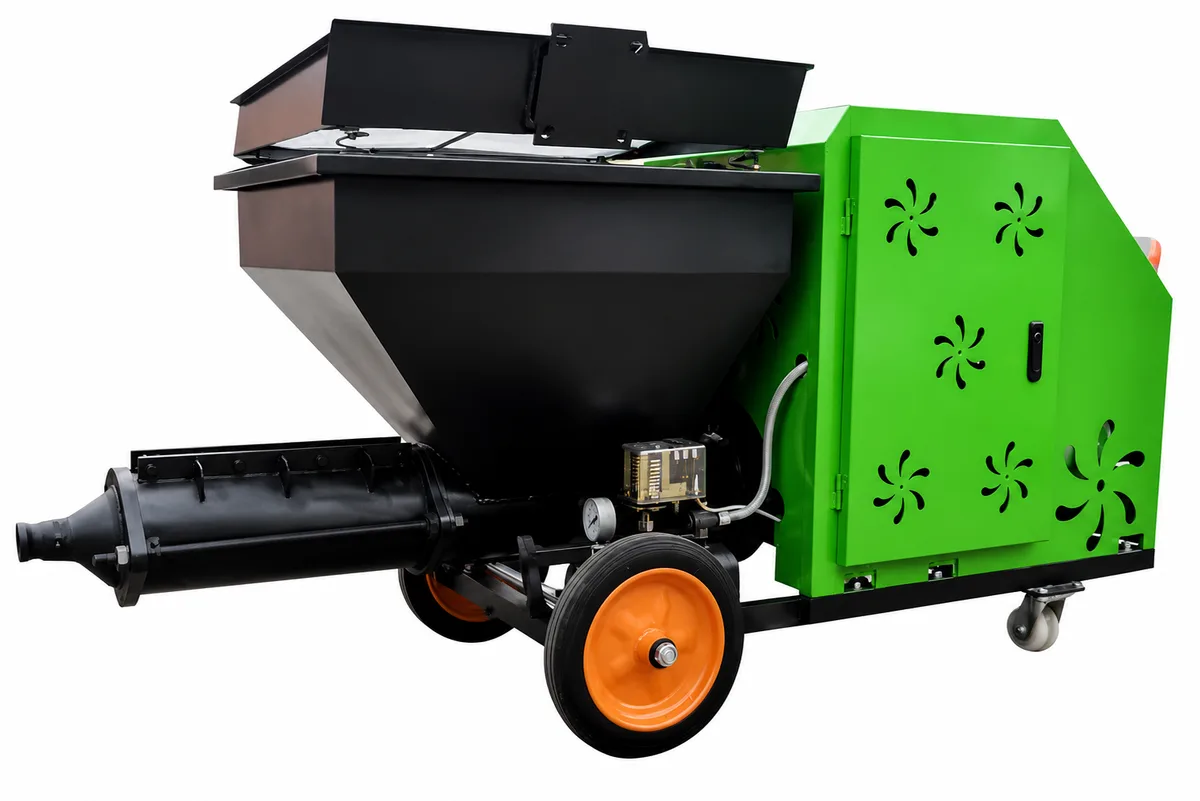

CYM-110AE	Electric	Four-cylinder silent compressor	11 kW	380V	250–300 m²/h	40 m	80 m	<10 mm	1.9×0.75×1 m	320 kg

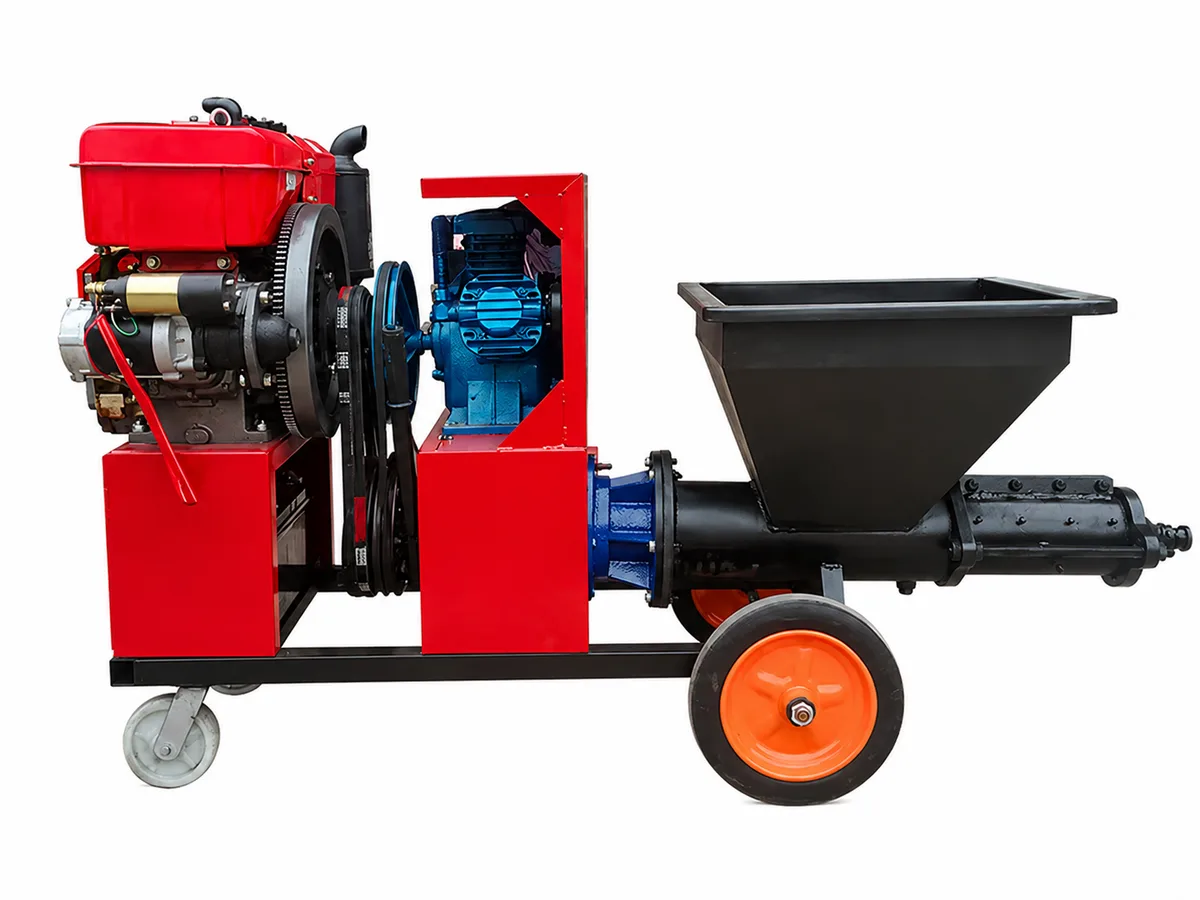

CYM-12AD	Diesel	3 kW	12 HP	—	200 m²/h	10–20 m	25–35 m	<7 mm	1.8×1×1.2 m	330 kg
CYM-15AD	Diesel	3 kW	15 HP	—	300 m²/h	15–25 m	30–40 m	<7 mm	1.8×1×1.2 m	—
CYM-18AD	Diesel	3 kW	18 HP	—	300 m²/h	15–25 m	30–40 m	<7 mm	1.8×1×1.2 m	—
CYM-25AD	Diesel	3 kW	25 HP	—	400 m²/h	25–35 m	50–60 m	<7 mm	1.8×1×1.2 m	—

REAL PROJECT CASE

Mortar Spraying on a Vietnam Construction Site

Direct pipeline delivery reduced repeated material handling and helped a local crew maintain continuous wall-plastering work.

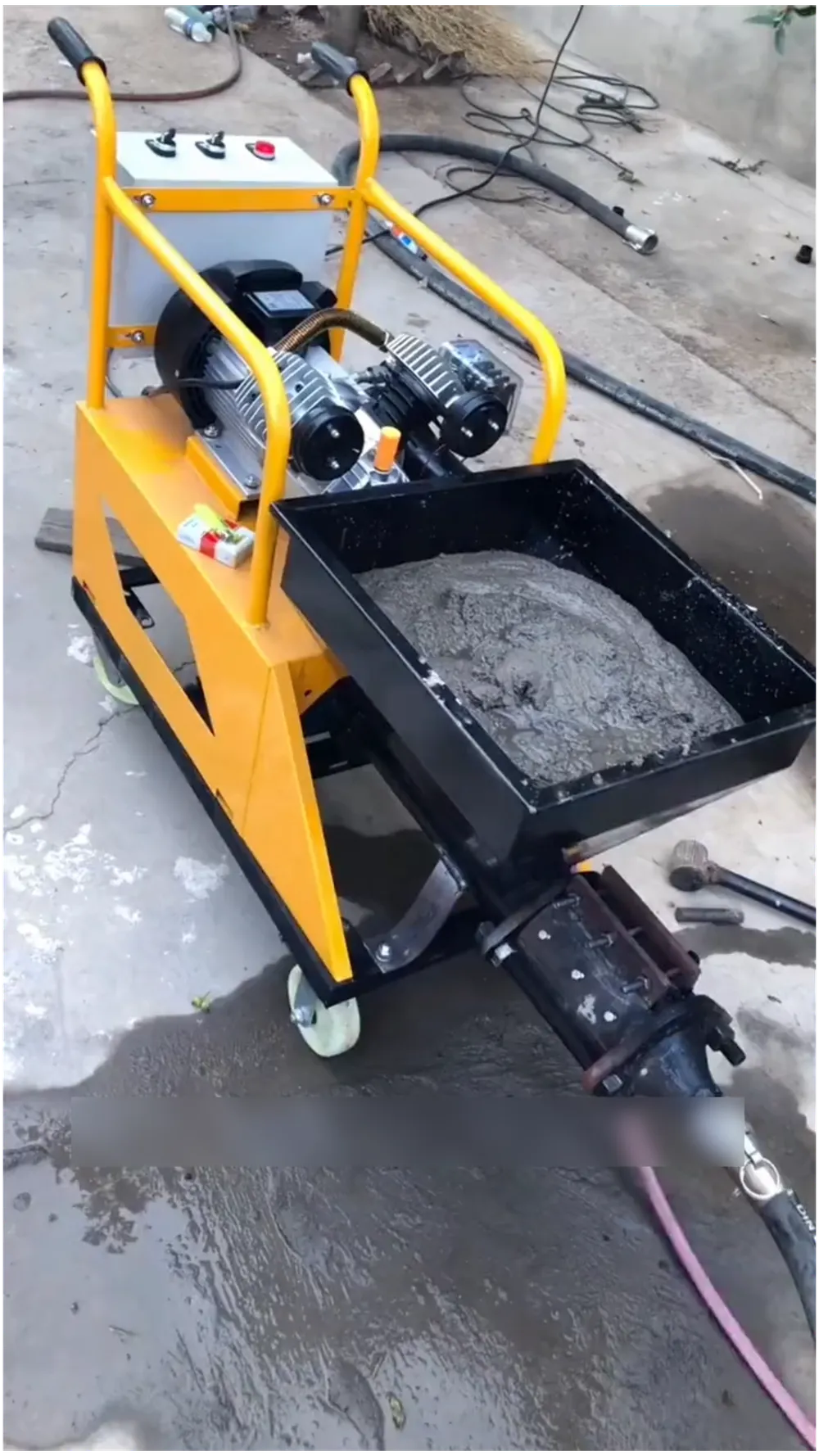

Mortar spraying machine operating in Vietnam — **Prepared Mortar Feeding**Mixed mortar is fed directly into the machine for continuous delivery.

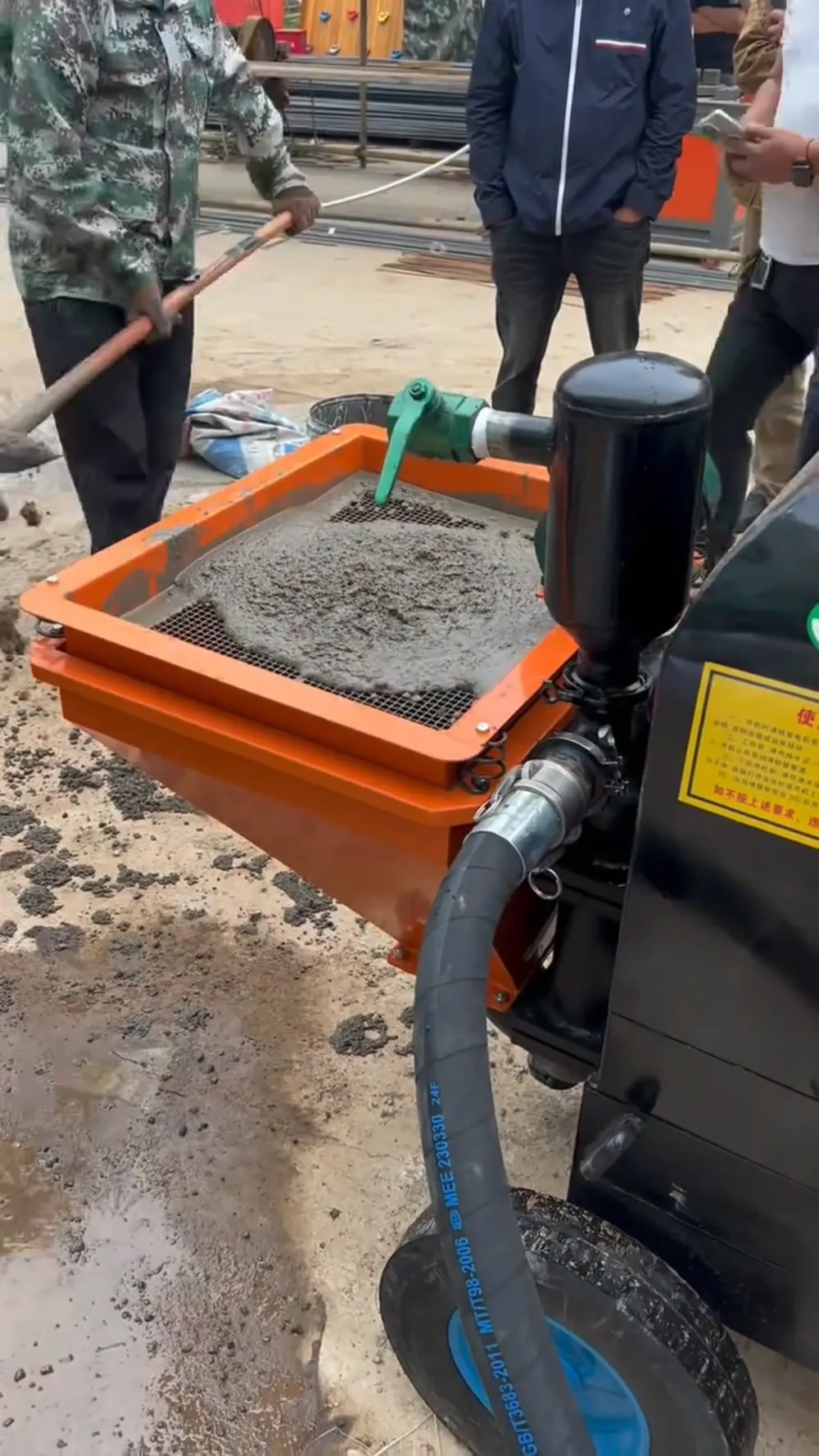

Mortar material being prepared for spraying — **Continuous Material Supply**Pipeline transport reduces repeated carrying between preparation and application areas.

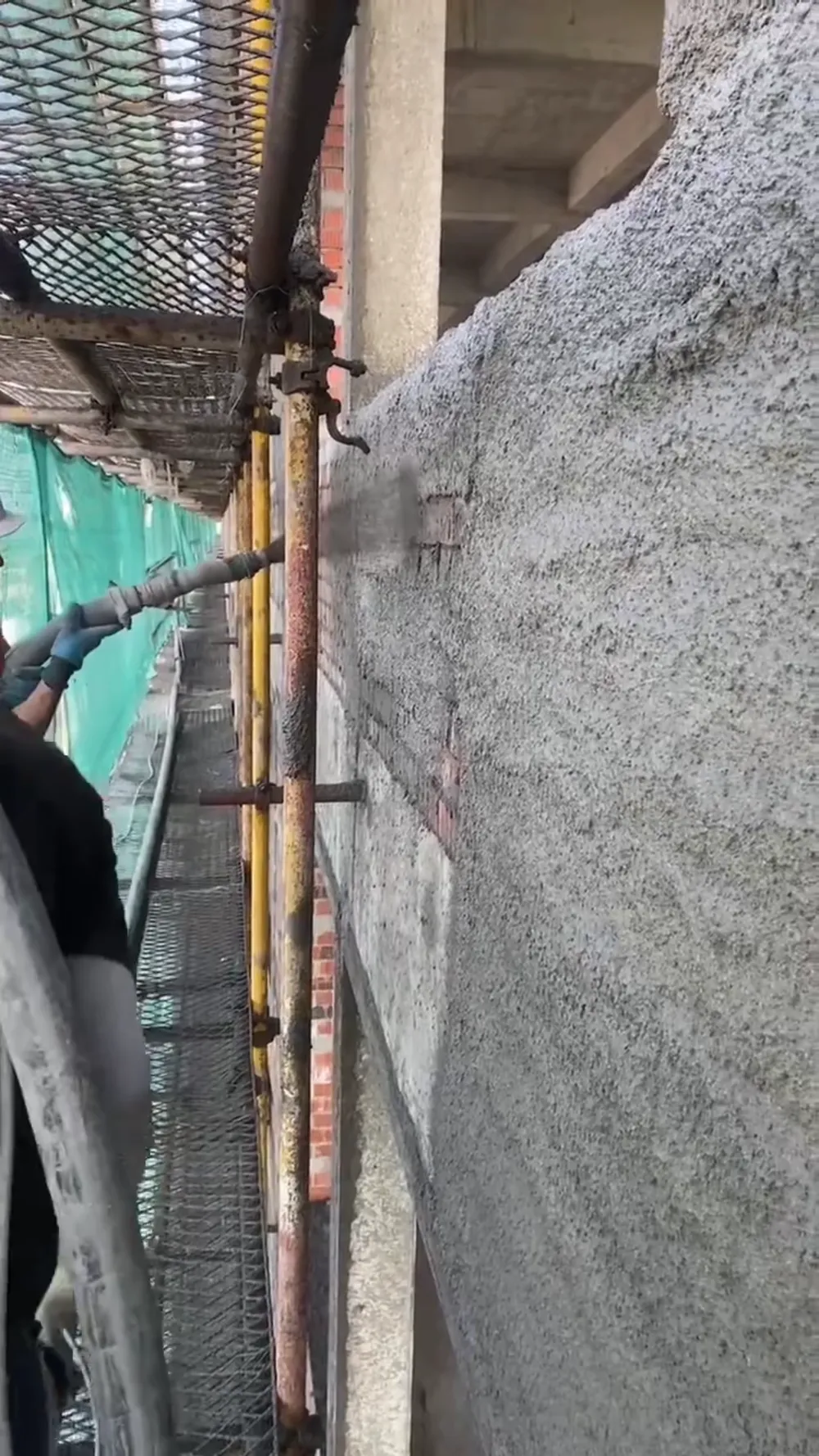

Worker spraying mortar onto a building wall — **Wall Spraying Application**Consistent delivery supports faster coverage before leveling and finishing.

VIETNAMCYM-75AE

Residential and Commercial Wall Plastering

A Vietnamese construction team was completing wall plastering for residential and commercial buildings. The previous workflow relied on manual mortar transport and hand application, requiring several workers and becoming increasingly difficult to coordinate on higher floors.

The team selected the CYM-75AE with 140–180 m²/h construction efficiency, 15–20 m vertical delivery and 10–50 m horizontal reach. The machine supports multi-story homes, shops, factories and other wall-mortar delivery and spraying work.

Once deployed, mixed mortar traveled directly through the pipeline to the work area. The crew focused on feeding, spraying and subsequent leveling instead of repeated carrying. On second and third floors or in deeper construction zones, fewer workers needed to move material up and down, allowing spraying to continue with a simpler site organization.

140–180 m²/h15–20 m Vertical10–50 m HorizontalFewer Workers

Faster Spraying · Less Material Handling · Simpler Site Organization

GLOBAL PARTNER PROGRAM

CYON TECH Dealer Cooperation Policy

Three cooperation levels support market testing, established local sales channels and long-term regional development.

Program Item	ATrial Dealer	BAuthorized Dealer	CCore Regional Dealer
Cooperation Position	Market testing and small-volume sales	Primary local sales partner	Long-term regional strategic partner
Application Requirements	First order 1–2 units; local customer resources; basic product training	First order 3–5 units; stable sales channel; continued annual purchasing; basic after-sales support	Company, warehouse, sales team and service staff; long-term stock; annual target commitment
Dealer Pricing	CYON TECH standard dealer price D1	Additional 3%–5% discount from D1	Additional 6%–10% discount from D1; special pricing for major projects
Inventory	No mandatory stock	Recommended stock of 1–2 popular models	Core models and common spare parts must be stocked
Regional Protection	No exclusive protection	May apply for city or provincial customer protection	May apply for provincial or regional protection; exclusivity available after annual targets are achieved
Customer Protection	Registered dealer-developed customers receive a protection period	Registered customers receive dealer priority	Inquiries from the protected region are prioritized to the core dealer
Demo Machine Support	Purchased at dealer price	Special discount for display machines	Lower display pricing may be requested for showrooms, exhibitions and demonstrations
Logo & Appearance	Available for batch orders	Color, logo, nameplate and packaging customization	Dealer-brand OEM, dual branding and regional packaging
Marketing Support	Photos, videos, specifications and e-catalogs	Local-language ads, videos, posters and social content	Joint local marketing plan plus exhibition, advertising and demo support
Sales Training	Basic product and quotation training	Selection, quotation, sales and application training	Dedicated training on selection, competition, negotiation and project solutions
Technical Training	Online operation guidance	Operation, maintenance and troubleshooting training	Local after-sales engineer training to build service capability
After-sales Response	Remote CYON TECH technical support	Priority technical response	Highest-priority support and dedicated service for major projects
Warranty Support	Standard warranty policy	Standard warranty with priority handling	Extended warranty or tailored policy based on annual purchasing
Spare Parts Policy	Standard dealer parts price	Additional discount on common parts	Highest parts discount and local inventory support
Initial Spare Parts	Standard spare-parts package available	Discounted package supplied with first order	Common wear parts provided free or at preferential price based on order volume
Fault Handling	Remote diagnosis by video and photos	Priority diagnosis and fast parts arrangement	Local dealer handles first response with CYON TECH technical and parts backup
Warranty Repair Cost	Standard warranty terms	Free parts for confirmed quality issues	Parts and reasonable local repair costs may be covered for confirmed quality issues
Parts Dispatch	Standard arrangement	In-stock parts dispatched with priority	Highest priority for core-dealer parts orders
New Product Policy	Open purchasing	Priority trial sales	Priority agency rights and sample testing
Production Scheduling	Standard scheduling	Priority scheduling	Priority production and container loading during peak season
Payment Terms	30%–50% deposit; balance before shipment	Improved terms may be requested after long-term cooperation	Special terms may be requested based on purchase scale and credit history
Project Price Protection	Available on request	Exclusive pricing available for major projects	Factory floor pricing available for major tenders and engineering procurement
Annual Rebate	Not available	Rebate after annual sales target is achieved	Tiered rebates and market incentives based on annual purchasing
Upgrade Mechanism	Upgrade to B after purchase target	Upgrade to C after sales, stock and service requirements	Annual review based on sales, market investment and service quality

Apply to Become a Dealer

FREQUENTLY ASKED QUESTIONS

Questions Before You Order

Clear answers covering supplier capabilities, OEM/ODM, ordering, shipping, training and distributor cooperation.

Are you a manufacturer or a trading company?

We are a construction machinery supplier from China, providing equipment selection, customization, export packaging, international shipping support, spare parts and after-sales technical service.

Can I customize the equipment with my own brand (OEM/ODM)?

Yes. We support OEM/ODM cooperation, including machine color, logo, nameplate, packaging and selected configurations. Customized solutions can also be provided for distributors and bulk orders.

What is your Minimum Order Quantity (MOQ)?

Most models support small-quantity trial orders. New customers and dealers can start with a trial order before expanding to larger-volume cooperation.

How do I choose the right machine for my project?

Tell us your application, required capacity, working conditions, power supply, destination country and budget. Our sales team will recommend a suitable model and configuration.

How do you handle international shipping and logistics?

We can arrange export packaging and provide international shipping solutions according to the destination. Different transportation options can be discussed based on equipment size, quantity and customer requirements.

Will my operators know how to use the machine?

Yes. We provide operation manuals, instructional videos and remote technical guidance. Our team can also assist with installation, operation, daily maintenance and troubleshooting.

What payment terms do you support?

Payment terms depend on the order value, equipment type and cooperation model. Standard orders are normally arranged with a deposit and balance payment before shipment.

Can I become a CYON TECH distributor?

Yes. We welcome distributors and local partners worldwide. Qualified dealers can receive factory pricing, marketing materials, technical training, spare-parts support, customization and regional market protection.
